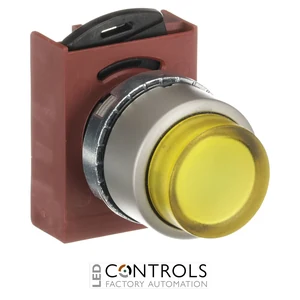

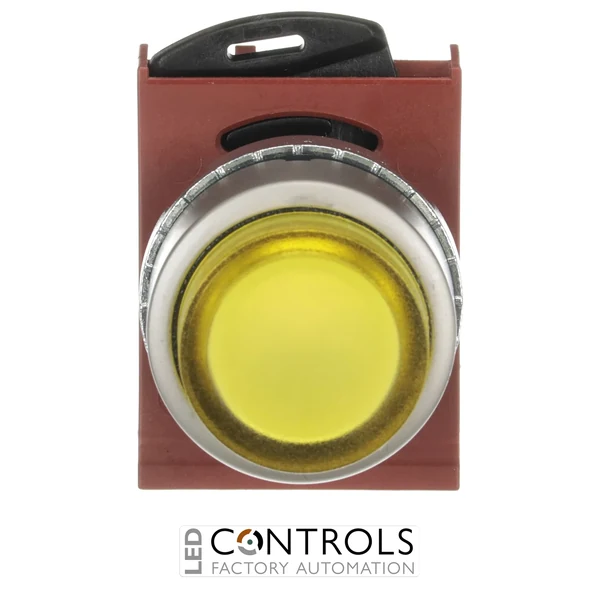

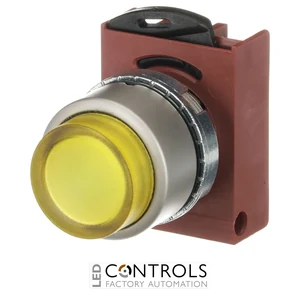

Why Choose the ABB P9MPLGSD Illuminated Pushbutton?
The ABB P9MPLGSD is a yellow illuminated momentary pushbutton from ABB's P9M modular metal pilot-device range, designed for industrial machinery, control panels and automation systems. Its extended yellow actuator provides a prominent operating surface while combining manual command input with visual signalling.
The P9MPLGSD uses momentary spring-return operation, automatically returning to its normal position after the operator releases the button. The extended plastic lens is yellow and illuminated, making the operator easy to identify on busy control panels and suitable for machine commands, acknowledgement functions and process-control applications.
Each P9MPLGSD includes the satin chrome metal body and nut together with the holder. Designed for ABB's 22 mm modular pilot-device system, the operator can be combined with compatible contact blocks and illumination components to create the electrical control and signalling arrangement required by the application.
Key Advantages
- Yellow illuminated actuator combines manual command input with clear visual signalling.
- Extended actuator profile provides a prominent operating surface for convenient panel operation.
- Momentary spring-return action automatically restores the pushbutton after each command.
- Yellow plastic lens provides durable colour identification and illuminated indication.
- Rugged satin chrome metal construction is designed for demanding industrial applications.
- IP66 front protection supports installation in challenging machinery and control-panel environments.
- Holder included simplifies integration into ABB's modular P9M system.
- Compatible modular construction allows contact and illumination components to be selected for the required circuit.
Key Features
- ABB P9M modular metal range.
- Illuminated momentary pushbutton.
- Extended actuator.
- Yellow actuator/lens.
- Plastic lens type.
- Momentary spring-return function.
- Non-latching operation.
- Satin chrome metal body.
- Metal mounting nut.
- Holder included.
- Designed for 22 mm pilot-device mounting.
- IP66 front protection.
- Designed for mining, construction and heavy-industry applications.
Extended Illuminated Control for Industrial Panels
The extended actuator of the ABB P9MPLGSD provides a more prominent operating surface than a flush pushbutton, helping operators locate and actuate the control on machinery and densely populated industrial panels. Its momentary mechanism returns automatically after release, while the illuminated yellow lens provides an additional visual signalling function at the same control position.
ABB's P9M modular architecture separates the operator from the electrical contact and illumination functions, allowing compatible components to be selected according to the application. Combined with its satin chrome metal construction, IP66 front protection and broad industrial operating-temperature range, the P9MPLGSD provides a durable solution for machinery, mining, construction and heavy-industry control systems.
Typical Applications
- Industrial machinery control panels.
- Operator acknowledgement commands.
- Machine-cycle and process commands.
- Illuminated control and signalling stations.
- Manufacturing and production equipment.
- Mining and heavy-industry machinery.
- Construction equipment control panels.
- Conveyor and material-handling systems.
- OEM machinery and industrial automation systems.
