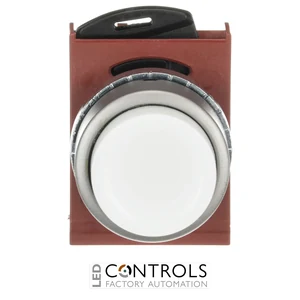

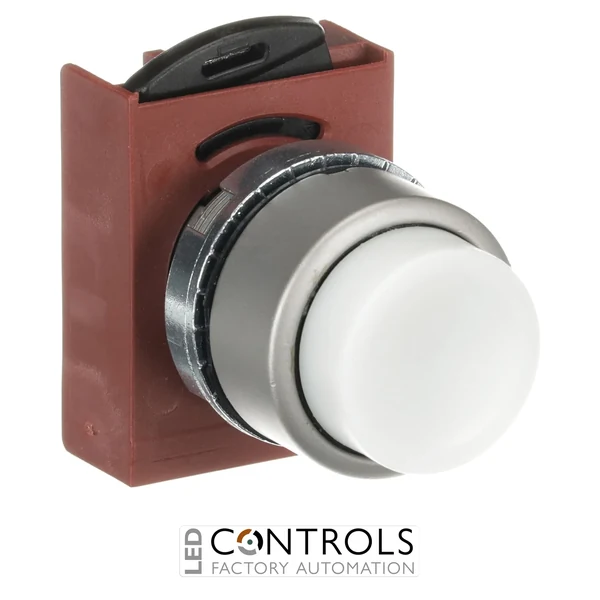

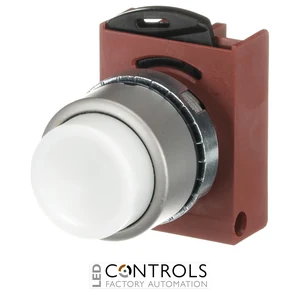

Why Choose the ABB P9MPLBSD Illuminated Pushbutton?
The ABB P9MPLBSD is a robust momentary illuminated pushbutton designed for operator control and signalling in industrial machinery, control panels and automation systems. Identified by ABB order code 1SFA184507R9105, it forms part of the ABB P9M Pushbuttons modular metal range and features a white extended plastic lens with a satin chrome metal body.
This pushbutton combines momentary spring-return operation with a white illuminated extended actuator, providing clear visual identification and positive manual operation. Its modular construction allows compatible ABB P9 contact blocks and illumination components to be selected according to the electrical switching and signalling requirements of the control circuit.
Designed for 22 mm industrial control applications, the P9MPLBSD provides IP66 front protection and is rated for an ambient operating temperature range of -30 to +70 °C. Each reference includes the satin chrome metal body and nut together with the holder, providing a modular operator assembly suited to demanding industrial environments.
Key Advantages
- Robust momentary illuminated pushbutton for industrial control and signalling applications.
- Part of the ABB P9M Pushbuttons modular metal range.
- White extended plastic lens provides clear visual and physical operator identification.
- Momentary spring-return action is ideal for temporary machine commands.
- Durable satin chrome metal construction for demanding industrial environments.
- IP66 front protection supports installation in challenging operating conditions.
Key Features
- ABB P9M Pushbuttons series.
- Momentary spring-return operation.
- White illuminated operator.
- Extended pushbutton design.
- Plastic lens type.
- Round operator construction.
- Satin chrome metal body and fixing nut.
- Supplied with holder for modular assembly.
- 22 mm panel-mounting format.
- IP66 front protection rating.
- Suitable for configuration with compatible ABB P9 contact and illumination components.
Reliable Illuminated Control for Industrial Machinery
Illuminated momentary pushbuttons combine manual operator input with visual signalling capability in a single panel-mounted device. When pressed, the P9MPLBSD provides a temporary mechanical control action and automatically returns after release, while its white illuminated extended lens provides clear visual identification for the assigned machine or process function.
The ABB P9M modular metal range is designed for demanding mining, construction and heavy industry applications while retaining the flexibility of a modular pilot-device system. The P9MPLBSD can be combined with compatible ABB P9 contact blocks and illumination components to create the switching and indication arrangement required by the machine or control system.
Typical Applications
- Industrial control panels and operator stations.
- Machine command and control functions.
- Status and process indication controls.
- Manufacturing and production machinery.
- Mining, construction and heavy industrial equipment.
- OEM machinery and automation systems.
