Why Choose the ABB P9MSLD0L Illuminated Selector Switch?

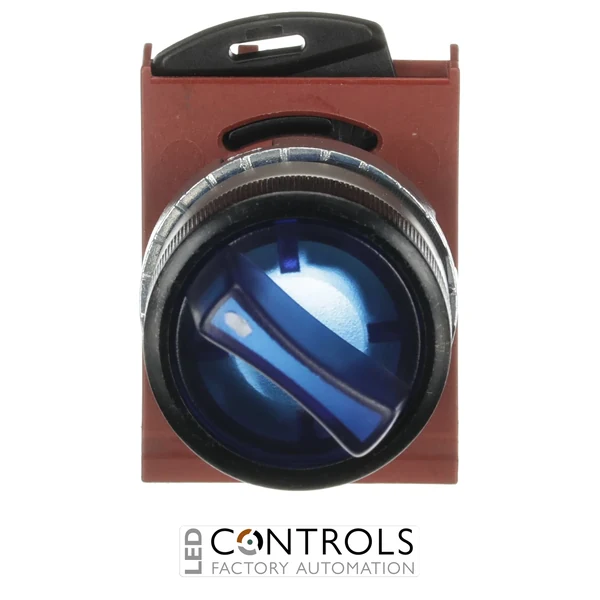

The ABB P9MSLD0L is a robust 2-position blue illuminated selector switch designed for industrial machinery, control panels and operator stations. Part of the ABB P9M modular metal pushbutton range, it combines a short rotary handle with maintained operation and durable metal construction for dependable industrial control.
This specific P9MSLD0L configuration uses CAM function D with two maintained selector positions arranged at 90°. Its blue illuminated short handle provides clear operator identification, while the maintained mechanism keeps the selected position engaged until the operator deliberately changes it.
Designed for the standard 22 mm mounting format, the P9MSLD0L includes the satin chrome metal body and nut together with the holder. Its IP66 front-side protection and NEMA 4X rating support installation in demanding industrial environments where robust operator controls are required.
Key Advantages
- 2-position illuminated selector switch for industrial machine and process control.
- Blue short rotary handle provides clear visual identification.
- Maintained operation keeps the selected position engaged until deliberately changed.
- CAM function D provides defined contact actuation with compatible P9M contact blocks.
- 90° selector operation provides clear separation between the two positions.
- Robust satin chrome metal body and nut for demanding industrial environments.
- IP66 front-side protection and NEMA 4X rating.
- Standard 22 mm mounting format simplifies panel integration.
Key Features
- ABB P9M modular metal range.
- Illuminated selector switch.
- 2 selector positions.
- Maintained / latching operation.
- Short rotary handle.
- Blue control element.
- Blue indicator-light cap.
- CAM function D.
- 90° switching angle.
- Suitable for illumination.
- Satin chrome metal body and nut with holder.
- 22 mm mounting hole diameter.
- IP66 front-side degree of protection.
- NEMA 4X protection classification.
Illuminated Two-Position Control for Industrial Machinery
The ABB P9MSLD0L provides two maintained selector positions separated by 90°, allowing an operator to select between two defined machine or process states. Because the selector is latching rather than spring-return, the chosen position remains mechanically selected until the short rotary handle is deliberately moved to the alternative position.
CAM function D defines the selector's contact-actuation pattern when assembled with compatible P9M contact blocks. The modular construction allows the required contact and illumination components to be selected for the application, while the blue illuminated operator provides clear visual identification on machinery and industrial control panels.
Typical Applications
- Industrial machinery control panels.
- Two-state machine mode selection.
- Process and automation control systems.
- Operator control and indication stations.
- Production and manufacturing equipment.
- Material handling and processing machinery.
- Mining, construction and heavy-industry equipment.
- OEM automation panels and machine building.
