Why Choose the ABB P9MSLZ0R Illuminated Selector Switch?

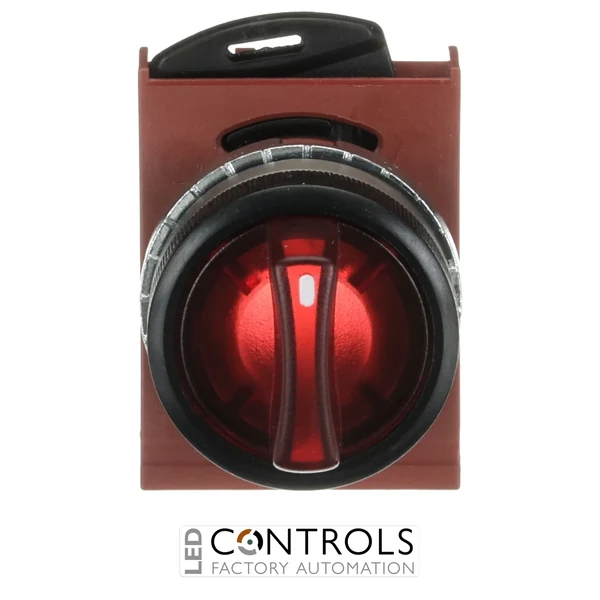

The ABB P9MSLZ0R is a robust 3-position illuminated selector switch designed for operator control and signalling in industrial machinery, control panels and automation systems. Identified by ABB order code 1SFA184601R9101, it forms part of the ABB P9M Pushbuttons modular metal range and features a red illuminated short-handle actuator with a satin chrome metal body.
This selector switch provides three operating positions at -45°, 0° and +45° and uses CAM function Z for defined contact actuation across the A, B and C selector positions. The illuminated red short handle combines manual selection with visual signalling capability, while the modular construction allows compatible ABB P9 contact blocks and illumination components to be configured for the required control circuit.
Designed for standard 22 mm industrial panel mounting, the P9MSLZ0R provides protection up to IP66 and is suitable for operating temperatures from -30 to +70 °C. Each reference includes the satin chrome metal body and nut together with the holder, providing a durable modular selector-switch operator for demanding industrial environments.
Key Advantages
- 3-position illuminated selector switch for industrial operator control and signalling.
- Part of the ABB P9M Pushbuttons modular metal range.
- Red illuminated short handle provides clear visual identification.
- CAM function Z provides defined switching functionality across three positions.
- 45° switching intervals provide clear physical separation between operating states.
- Durable metal construction with protection up to IP66 for demanding industrial applications.
Key Features
- ABB P9M Pushbuttons series.
- 3-position illuminated selector switch.
- Short-handle actuator.
- Red operator colour.
- CAM function Z.
- Selector positions at -45°, 0° and +45°.
- Three operating positions: A, B and C.
- Satin chrome metal body and fixing nut.
- Supplied with holder for modular assembly.
- 22 mm panel-mounting format.
- Protection up to IP66.
- Suitable for configuration with compatible ABB P9 contact and illumination components.
Reliable Three-Position Selection for Industrial Machinery
Three-position illuminated selector switches combine manual operating-state selection with visual signalling in a compact panel-mounted device. The P9MSLZ0R provides positions at -45°, 0° and +45° and uses ABB's CAM function Z, providing clearly defined A, B and C operating positions for machine and process-control functions.
The ABB P9M modular metal range is designed for robust industrial operator interfaces while retaining the flexibility of a modular pilot-device system. The P9MSLZ0R can be combined with compatible ABB P9 contact blocks and illumination components to create the required switching and signalling arrangement, while its red short handle provides clear identification at the operator interface.
Typical Applications
- Industrial control panels and operator stations.
- Three-state machine function selection.
- Operating-mode and process selection controls.
- Manufacturing and production machinery.
- Industrial automation and equipment control systems.
- OEM machinery and modular control-panel assemblies.
