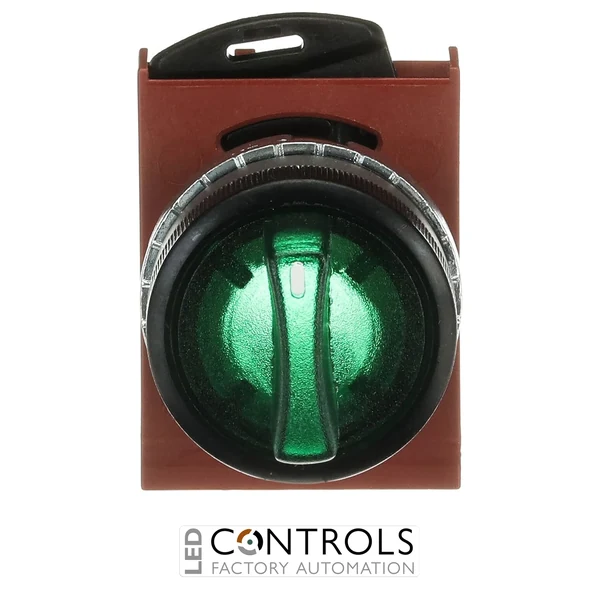

Why Choose the ABB P9MSLZ0V Illuminated Selector Switch?
The ABB P9MSLZ0V is a robust 3-position maintained illuminated selector switch designed for operator control and signalling in industrial machinery, control panels and automation systems. Identified by ABB order code 1SFA184602R9102, it forms part of the ABB P9M Pushbuttons modular metal range and features a green illuminated short-handle actuator with a satin chrome metal body.
This selector switch provides three maintained operating positions, identified as A, B and C, and uses CAM function Z for defined contact actuation across the selector positions. Its green illuminated short handle combines manual selection with visual signalling capability, while the modular design allows compatible ABB P9 contact blocks and illumination components to be configured according to the requirements of the control circuit.
Designed for standard 22 mm industrial panel mounting, the P9MSLZ0V provides IP66 front protection and is suitable for operating temperatures from -30 to +70 °C. The reference includes the satin chrome metal body and nut together with the holder, providing a durable modular selector-switch operator for demanding industrial environments.
Key Advantages
- 3-position maintained illuminated selector switch for industrial operator control and signalling.
- Part of the ABB P9M Pushbuttons modular metal range.
- Green illuminated short handle provides clear visual identification.
- CAM function Z provides defined switching functionality across three positions.
- Maintained A, B and C positions remain selected until the operator is manually moved.
- Durable satin chrome metal construction with IP66 front protection.
Key Features
- ABB P9M Pushbuttons series.
- 3-position illuminated selector switch.
- Maintained switching action.
- Short-handle actuator.
- Green operator and indicator colour.
- CAM function Z.
- Maintained positions A, B and C.
- Satin chrome metal bezel and body construction.
- Supplied with body, nut and holder.
- 22 mm panel-mounting format.
- IP66 front protection and NEMA 4X protection.
- Suitable for configuration with compatible ABB P9 contact and illumination components.
Reliable Three-Position Selection for Industrial Machinery
Three-position illuminated selector switches combine manual operating-state selection with visual signalling in a compact panel-mounted device. The P9MSLZ0V provides three maintained positions, identified as A, B and C, and uses ABB's CAM function Z. Its latching action means the selected position remains mechanically set until the operator deliberately moves the short handle to another position.
The ABB P9M modular metal range is designed for demanding applications including mining, construction and heavy industry while retaining the flexibility of a modular pilot-device system. The P9MSLZ0V can be combined with compatible ABB P9 contact blocks and illumination components to create the required switching and signalling arrangement, while its green illuminated short handle provides clear operator identification.
Typical Applications
- Industrial control panels and operator stations.
- Three-state machine function selection.
- Maintained operating-mode selection.
- Manufacturing and production machinery.
- Mining, construction and heavy industrial equipment.
- OEM machinery and industrial automation systems.
