Why Choose the ABB P9MSLZ1G Illuminated Selector Switch?

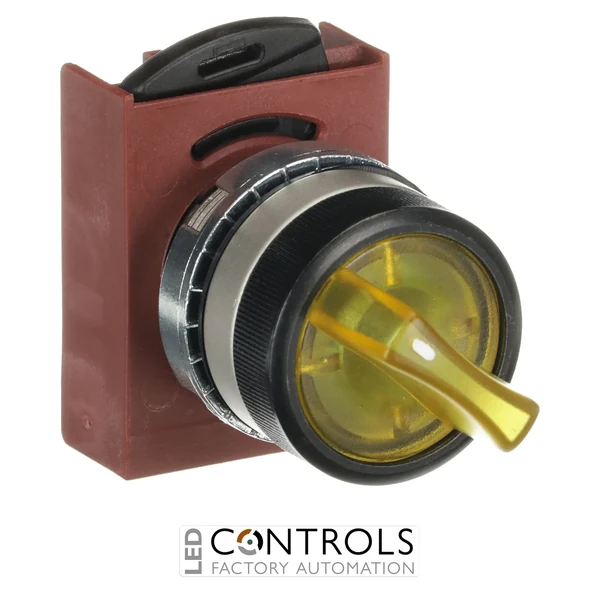

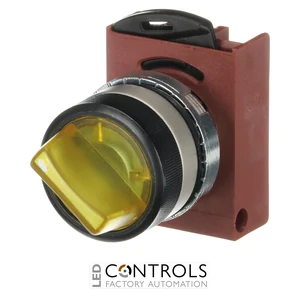

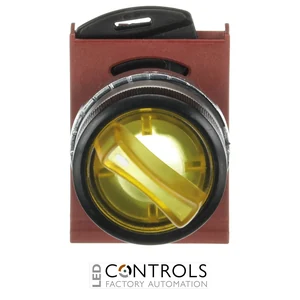

The ABB P9MSLZ1G is a robust 3-position maintained/momentary illuminated selector switch designed for operator control and signalling in industrial machinery, control panels and automation systems. Identified by ABB order code 1SFA184613R9103, it forms part of the ABB P9M Pushbuttons modular metal range and features a yellow illuminated short-handle actuator with a satin chrome metal body.
This selector switch combines maintained and momentary operation across its three selector positions and uses CAM function Z for defined contact actuation. The spring-return function allows the designated momentary position to return automatically when released, while the maintained positions remain selected until manually changed.
Designed for standard 22 mm industrial panel mounting, the P9MSLZ1G provides IP66 front protection and NEMA 4X protection. Its modular design allows compatible ABB P9 contact blocks and illumination components to be selected according to the required electrical switching and signalling arrangement.
Key Advantages
- 3-position maintained/momentary operation provides both stable and spring-return control within one selector.
- Part of the ABB P9M Pushbuttons modular metal range.
- Yellow illuminated short handle provides clear operator identification and signalling.
- CAM function Z supports defined three-position contact actuation.
- Durable satin chrome metal construction for demanding industrial environments.
- IP66 front and NEMA 4X protection support use in challenging operating conditions.
Key Features
- ABB P9M Pushbuttons series.
- 3-position illuminated selector switch.
- Maintained/momentary operating principle.
- Spring-return functionality for the momentary selector position.
- Short-handle actuator.
- Yellow operator and indicator colour.
- CAM function Z.
- Satin chrome metal body and fixing nut.
- Supplied with holder for modular assembly.
- 22 mm panel-mounting format.
- IP66 front protection.
- NEMA 4X protection.
- Suitable for compatible ABB P9 contact blocks and illumination components.
Flexible Maintained and Momentary Selection for Industrial Machinery
Maintained/momentary selector switches provide multiple control behaviours from a single panel-mounted operator. The P9MSLZ1G combines stable selector positions with a spring-return momentary function, allowing machine designers to implement operating sequences where one selection must remain active while another command is only active while the operator is deliberately selected.
The ABB P9M modular metal range is designed for demanding mining, construction and heavy-industry applications while retaining the flexibility of a modular pilot-device system. The P9MSLZ1G can be combined with compatible ABB P9 contact blocks and illumination components to create the required switching and signalling arrangement, while its yellow illuminated short handle provides clear visual identification at the operator interface.
Typical Applications
- Industrial control panels and operator stations.
- Three-state machine function selection.
- Maintained and jog/inching control arrangements.
- Manufacturing and production machinery.
- Mining, construction and heavy industrial equipment.
- OEM machinery and industrial automation systems.
