Why Choose the ABB P9MSLZ3V Selector Switch?

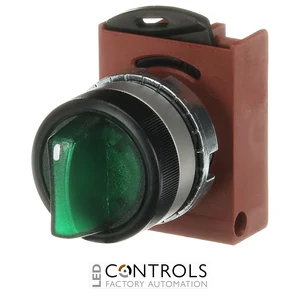

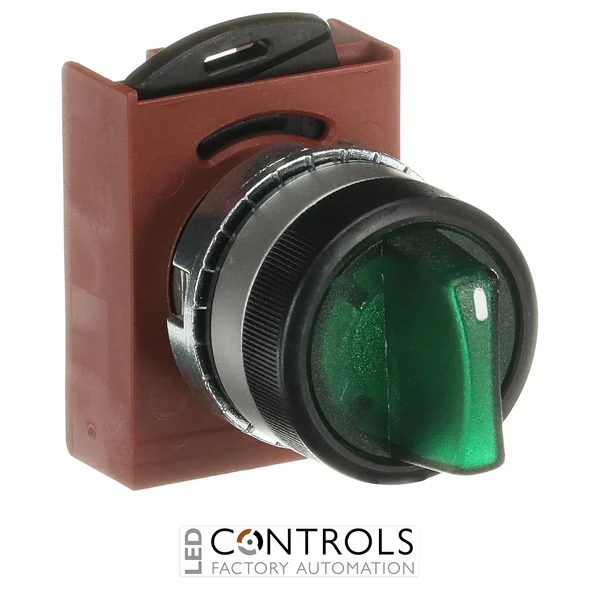

The ABB P9MSLZ3V is a robust illuminated three-position momentary selector switch from the ABB P9M modular metal pilot-device range, designed for reliable operator control in industrial machinery, control panels and automation systems. Supplied under ABB order code 1SFA184632R9102, it features a highly visible green short rotary handle and durable satin-chrome metal construction.
The P9MSLZ3V uses CAM function Z and provides a three-position selector arrangement with momentary spring-return operation. This makes it particularly suitable for temporary machine commands where the operator selects a function and the handle automatically returns when released rather than remaining mechanically latched.
Designed for standard 22 mm panel mounting, the P9MSLZ3V includes the satin-chrome metal body and nut together with the holder. Its illuminated actuator provides clear visual signalling, while IP66 front-side protection supports reliable operation in demanding machinery, mining, construction and heavy-industry environments.
Key Advantages
- Robust three-position illuminated selector switch for industrial control.
- Momentary spring-return operation for temporary operator commands.
- Green short rotary handle provides clear visual identification.
- CAM function Z for compatible ABB P9M contact arrangements.
- Illuminated design combines operator control with visual indication.
- Durable satin-chrome metal body and nut.
- Standard 22 mm panel mounting simplifies installation.
- IP66 front-side protection supports demanding industrial applications.
Key Features
- ABB P9M modular metal range.
- Three-position illuminated selector switch.
- Momentary operating function.
- Spring-return action.
- Short rotary handle.
- Green actuator and indicator colour.
- CAM function Z.
- Satin-chrome metal body and nut.
- Holder included with the selector operator.
- Designed for 22 mm mounting holes.
- IP66 front-side protection.
- Suitable for modular ABB P9M contact arrangements.
Momentary Three-Position Control for Industrial Machinery
Momentary selector switches are designed for machine commands that should remain selected only while deliberately operated. The ABB P9MSLZ3V provides three switching positions with spring-return functionality, making it well suited to temporary directional, adjustment, jogging and other operator-command functions.
As part of ABB's P9M modular metal system, the P9MSLZ3V combines a durable metal operator with flexible modular contact arrangements. Its illuminated green short handle improves visibility at the control station, while the IP66-protected front supports installation in industrial environments exposed to dust, moisture and demanding operating conditions.
Typical Applications
- Industrial machinery control panels.
- Momentary machine command functions.
- Forward/reverse and directional controls.
- Jogging and adjustment commands.
- Mining and heavy-industry equipment.
- Construction machinery and control systems.
- Production and manufacturing equipment.
- Material handling and conveyor systems.
- Operator stations and industrial control consoles.
