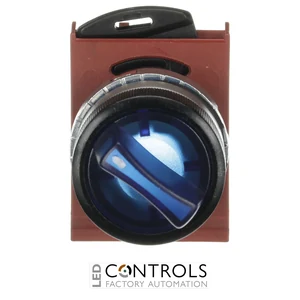

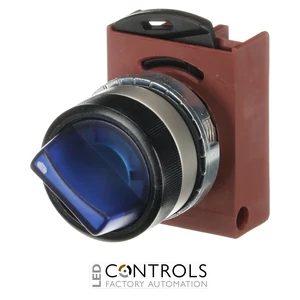

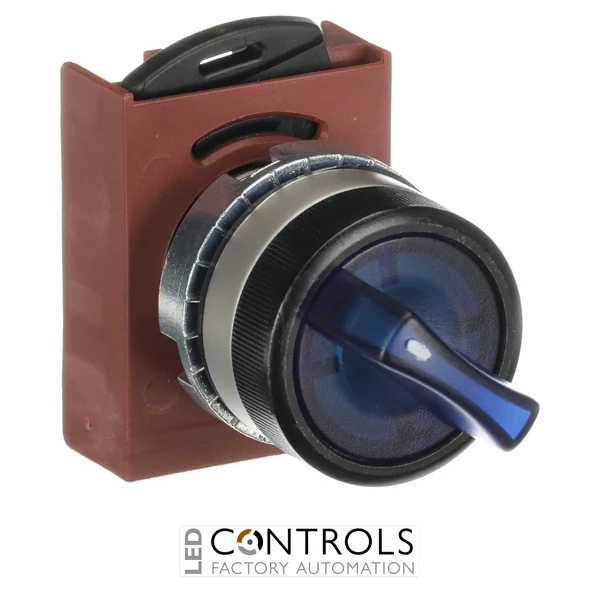

Why Choose the ABB P9MSLZ3L Illuminated Selector Switch?
The ABB P9MSLZ3L is a robust blue illuminated 3-position selector switch from the ABB P9M modular metal range, designed for reliable operator control in demanding industrial applications. Supplied under ABB order code 1SFA184636R9104, this selector switch combines a short rotary handle with durable satin chrome metal construction for machinery, control panels and operator stations.
The P9MSLZ3L provides 3-position momentary operation with CAM function Z. Its spring-return switching action makes it suitable for applications where the operator issues temporary commands rather than leaving the selector latched in position, while the blue illuminated operator provides clear visual identification.
Designed for a standard 22 mm mounting hole, the P9MSLZ3L provides IP66 front protection and NEMA 4X protection. Its modular metal construction is specifically suited to demanding industrial environments including mining, construction and heavy industry.
Key Advantages
- Heavy-duty ABB P9M modular metal selector switch for industrial applications.
- 3-position momentary operation for temporary machine and process commands.
- Spring-return switching function prevents the selector remaining latched in an operated position.
- Blue illuminated operator provides clear visual identification.
- Compact short rotary handle for straightforward operation.
- CAM function Z switching configuration.
- IP66 front and NEMA 4X protection for demanding environments.
- Standard 22 mm mounting simplifies installation in industrial control panels.
Key Features
- ABB P9M Pushbuttons modular metal range.
- 3-position illuminated selector switch.
- Momentary operating principle.
- Spring-return switching action.
- Non-latching selector operation.
- Short rotary handle actuator.
- Blue control element and indicator-light colour.
- CAM function Z.
- Satin chrome metal body and nut.
- Holder included.
- 22 mm mounting-hole diameter.
- IP66 degree of protection from the front.
- NEMA 4X protection classification.
Momentary Selection Control for Industrial Machinery
Momentary selector switches provide operators with a convenient way to issue temporary commands or selections to industrial machinery. The ABB P9MSLZ3L uses a three-position spring-return mechanism, allowing the operator to actuate the selector while preventing the operated selection from remaining mechanically latched after release.
The illuminated blue actuator improves identification at the machine interface, while ABB's P9M modular architecture enables integration with compatible contact and illumination components. Its metal construction, IP66 front protection and NEMA 4X classification make the P9MSLZ3L suitable for rugged machinery and industrial automation environments.
Typical Applications
- Industrial machinery control panels.
- Momentary machine command selection.
- Operator control stations and consoles.
- Mining and materials-handling equipment.
- Construction machinery and equipment.
- Manufacturing and process-control systems.
- Heavy-industry automation installations.
