Why Choose the ABB P9MSAD0R Selector Switch?

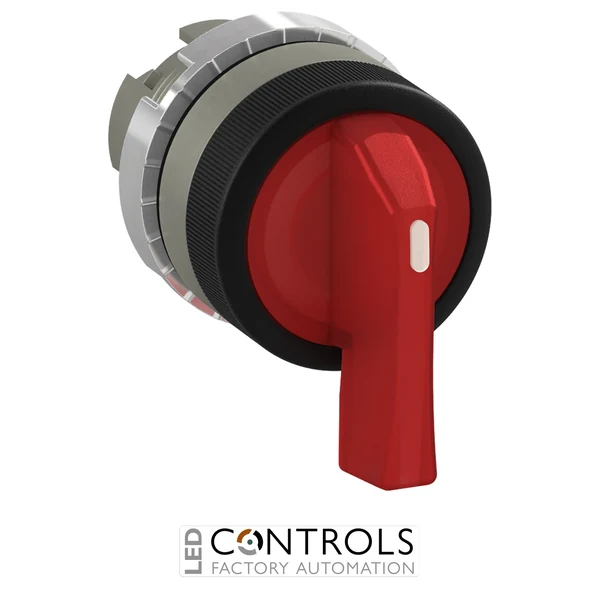

The ABB P9MSAD0R is a robust illuminated two-position selector switch from the ABB P9M modular metal pilot-device range, designed for dependable operator control and visual indication in industrial machinery, control panels and automation systems. Supplied under ABB order code 1SFA184641R9101, it features a distinctive red long rotary handle and satin-chrome metal construction.
The P9MSAD0R provides two maintained positions, identified as A and C, with a 90° operating angle and CAM function D. Its latching operating principle means the handle remains in the selected position after release, making it suitable for mode selection, enable/disable commands and other industrial functions requiring a retained control state.
Designed for standard 22 mm panel mounting, the P9MSAD0R includes the satin-chrome metal body and nut together with the holder. Its illuminated red handle supports clear status indication, while IP66 front-side protection and robust metal construction make it suitable for demanding mining, construction, heavy-industry and general machinery applications.
Key Advantages
- Robust illuminated two-position selector switch for industrial control.
- Red long rotary handle provides clear visibility and convenient operation.
- Maintained latching action retains the selected position after release.
- A/C selector arrangement with a 90° operating angle.
- CAM function D for compatible ABB P9M contact arrangements.
- Durable satin-chrome metal body and nut.
- Standard 22 mm panel mounting simplifies integration.
- IP66 front-side protection supports demanding industrial installations.
Key Features
- ABB P9M modular metal range.
- Two-position illuminated selector switch.
- Maintained operating function.
- Long rotary handle.
- Red actuator and indicator colour.
- CAM function D.
- A and C selector positions.
- 90° switching angle.
- Satin-chrome metal body and nut.
- Holder included with the selector operator.
- Designed for 22 mm mounting holes.
- IP66 front-side protection.
Reliable Maintained Selection for Industrial Control
Maintained selector switches retain their selected mechanical position after the operator releases the handle, providing a stable control command without continuous manual operation. The ABB P9MSAD0R provides two A/C positions separated by a 90° rotation, making it well suited to straightforward mode-selection, on/off and enable/disable functions.
As part of ABB's P9M modular metal range, the P9MSAD0R can be combined with compatible P9M contact blocks to create switching arrangements matched to the application's electrical requirements. Its illuminated red long handle, metal front ring and IP66 protection provide a durable operator interface for demanding industrial control stations.
Typical Applications
- Industrial machinery control panels.
- Machine operating-mode selection.
- On/off and enable/disable commands.
- Mining and heavy-industry equipment.
- Construction machinery and control systems.
- Production and manufacturing equipment.
- Material handling and conveyor systems.
- Operator stations and control consoles.
- OEM machinery and industrial automation systems.
