Why Choose the ABB P9MSAD0L Illuminated Selector Switch?

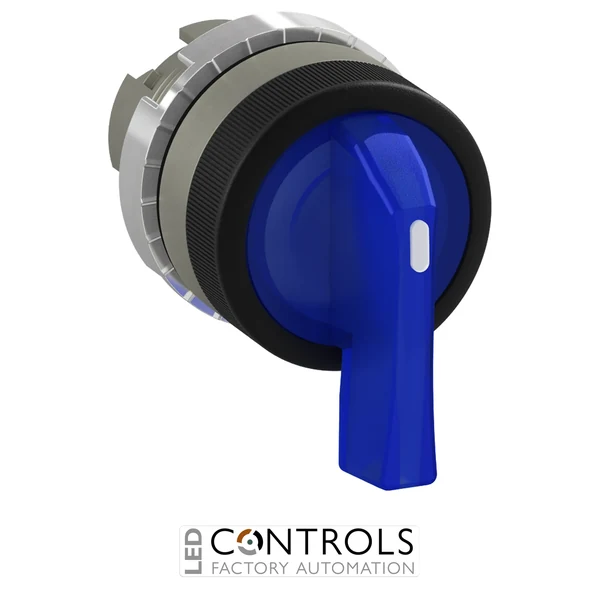

The ABB P9MSAD0L is a robust 2-position blue illuminated selector switch designed for industrial machinery, control panels and operator stations. Part of the ABB P9M modular metal range, it combines a long rotary handle with maintained operation and durable satin chrome metal construction for reliable industrial control.
This specific P9MSAD0L configuration uses CAM function D and provides two maintained positions, identified as A and C, with a 90° switching angle. Its blue illuminated long-handle operator provides clear visual identification, while the maintained mechanism keeps the selected position engaged until deliberately changed.
Designed for a standard 22 mm mounting hole, the P9MSAD0L includes the satin chrome metal body and nut together with the holder. Its IP66 front-side protection, NEMA 4X classification and operating temperature range of -30 to +70 °C make it suitable for demanding machinery, construction, mining and heavy-industry applications.
Key Advantages
- 2-position illuminated selector switch for industrial machine and process control.
- Blue long rotary handle provides a prominent and clearly identifiable operator interface.
- Maintained / latching operation keeps the selected position engaged until deliberately changed.
- CAM function D provides defined contact actuation with compatible P9M contact blocks.
- 90° switching angle provides clear separation between the A and C positions.
- Robust satin chrome metal body and nut for demanding industrial environments.
- IP66 front-side protection and NEMA 4X classification.
- Standard 22 mm mounting format simplifies integration into industrial control panels.
Key Features
- ABB P9M modular metal range.
- Illuminated selector switch.
- 2 selector positions.
- Positions identified as A / C.
- Maintained / latching operating principle.
- No spring return.
- Long rotary handle.
- Blue control element.
- Blue indicator-light cap.
- CAM function D.
- 90° switching angle.
- Suitable for illumination.
- Satin chrome metal body and nut with holder.
- 22 mm mounting hole diameter.
- IP66 front-side degree of protection.
Maintained Two-Position Control with a Long Rotary Handle
The ABB P9MSAD0L provides two maintained positions identified as A and C with a 90° switching angle, allowing an operator to select between two defined machine or process states. Because the selector is latching rather than spring-return, the selected position remains mechanically engaged until the long rotary handle is deliberately moved to the alternative position.
CAM function D defines the selector's mechanical contact-actuation arrangement when assembled with compatible ABB P9M contact blocks. The modular construction allows the required contact arrangement to be selected for the application, while the blue illuminated long handle provides both a prominent operating surface and clear visual indication.
Typical Applications
- Industrial machinery control panels.
- Two-state machine mode selection.
- Process and automation control systems.
- Operator control and indication stations.
- Production and manufacturing equipment.
- Material handling and processing machinery.
- Mining, construction and heavy-industry equipment.
- OEM automation panels and machine building.
