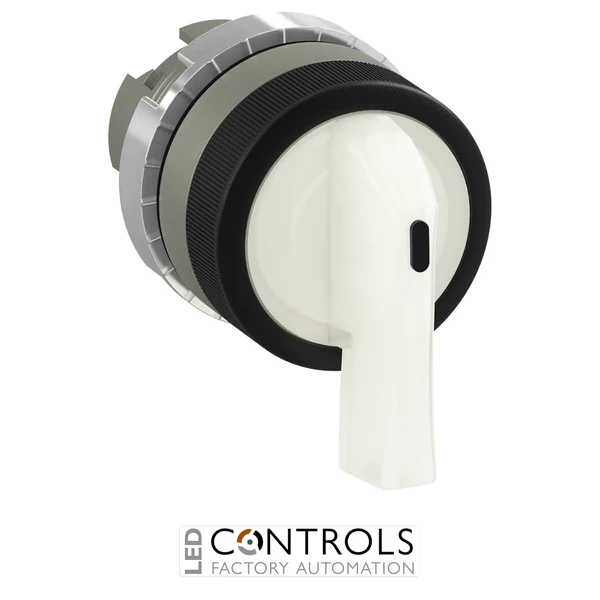

Why Choose the ABB P9MSAD0B Illuminated Selector Switch?
The ABB P9MSAD0B is a robust white illuminated 2-position selector switch from the ABB P9M modular metal range, designed for dependable operator control in demanding industrial applications. Supplied under ABB order code 1SFA184647R9105, this selector switch features a long rotary handle and satin chrome metal construction for machinery, control panels and operator stations.
The P9MSAD0B provides 2-position maintained operation with ABB CAM function D. Its white illuminated operator provides clear visual identification, while the maintained switching action allows the long handle to remain in the selected position until deliberately moved by the operator.
Designed for a standard 22 mm mounting hole, the P9MSAD0B provides IP66 front protection. Each unit includes the satin chrome metal body and nut together with the holder, providing a durable modular operator suitable for mining, construction, heavy industry and general industrial automation applications.
Key Advantages
- Heavy-duty ABB P9M modular metal selector switch for industrial applications.
- 2-position maintained operation for stable machine and process selection.
- White illuminated operator provides clear visual identification.
- Long rotary handle provides convenient manual selection.
- CAM function D switching configuration.
- 90° selector arrangement between the two operating positions.
- IP66 front protection for demanding industrial environments.
- Standard 22 mm mounting simplifies control-panel installation.
Key Features
- ABB P9M Pushbuttons modular metal range.
- 2-position illuminated selector switch.
- Maintained operating principle.
- Long-handle rotary actuator.
- White operator colour.
- CAM function D.
- 90° selector arrangement.
- Satin chrome metal body and nut.
- Holder included.
- 22 mm mounting-hole diameter.
- IP66 degree of protection from the front.
- Designed for mining, construction and heavy-industry applications.
Reliable Selection Control for Industrial Machinery
Selector switches provide operators with a dependable method of choosing between defined machine states, operating modes or process functions. The ABB P9MSAD0B uses two maintained positions, allowing the selected control state to remain mechanically selected until the operator deliberately moves the long rotary handle to the alternative position.
The white illuminated operator improves identification at the machine interface, while ABB's modular P9M architecture enables integration with compatible contact and illumination components. Its satin chrome metal construction and IP66 front protection make the P9MSAD0B well suited to demanding machinery and industrial automation environments.
Typical Applications
- Industrial machinery control panels.
- Machine operating-mode selection.
- Operator control stations and consoles.
- Mining and materials-handling equipment.
- Construction machinery and equipment.
- Manufacturing and process-control systems.
- Heavy-industry automation installations.
