Why Choose the ABB P9MPS22G Selector Pushbutton?

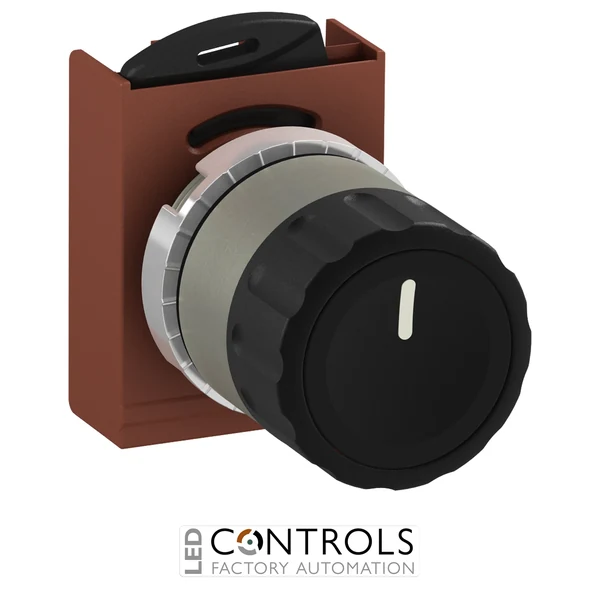

The ABB P9MPS22G is a robust two-position selector pushbutton from ABB's P9M modular metal pilot-device range, designed to combine rotary selection and pushbutton actuation within a single industrial control operator. Supplied under ABB order code 1SFA184691R9006, it provides a compact solution for machinery, control panels and operator stations requiring multiple control functions from one panel position.
The P9MPS22G uses CAM function 231 and provides two selector positions, A and C, separated by a 90° operating angle. In addition to rotary selection, the operator can be depressed to provide a pushbutton command, allowing selector and pushbutton functions to be integrated into one device.
Designed for standard 22 mm panel mounting, each P9MPS22G includes the satin-chrome metal body and nut together with the holder. Its durable modular construction and compact design make it well suited to demanding industrial applications where panel space, operator convenience and flexible contact configuration are important.
Key Advantages
- Combines selector and pushbutton functions in one industrial operator.
- Two-position A/C selection with 90° rotary movement.
- Separate depressible pushbutton action adds an additional operator command.
- CAM function 231 defines the selector/contact operating sequence.
- Reduces the number of separate operators required on a control panel.
- Includes the satin-chrome metal body, nut and holder.
- Standard 22 mm mounting format supports straightforward panel integration.
- Compatible with ABB P9M modular contact-block arrangements.
Key Features
- ABB P9M modular metal range.
- Selector pushbutton operator.
- Two rotary positions.
- A and C selector positions.
- 90° selector movement.
- Push-to-operate function.
- CAM function 231.
- Black actuator.
- Satin-chrome metal body and nut.
- Supplied together with the holder.
- Designed for 22 mm mounting holes.
- Modular contact configuration using compatible P9M contact blocks.
The ABB P9MPS22G integrates two different operator actions into a single compact device. The rotary selector provides A and C positions separated by 90°, while depressing the actuator provides an additional pushbutton action. This allows designers to implement functions such as selecting a mode and then initiating or confirming a command without installing a second front-panel operator.
CAM function 231 defines the contact actuation sequence for the two selector positions and the normal/depressed states. The P9MPS22G is designed for use with compatible ABB P9M modular contact blocks, including P9B11VN blocks, allowing the electrical switching arrangement to be configured for the requirements of the machine or control system.
Typical Applications
- Industrial machinery control panels.
- Mode selection with command confirmation.
- Machine setup and adjustment controls.
- Operator stations and control consoles.
- Production and manufacturing equipment.
- Material handling and conveyor systems.
- Process equipment controls.
- OEM machinery and automation systems.
- Control panels where operator space is limited.
