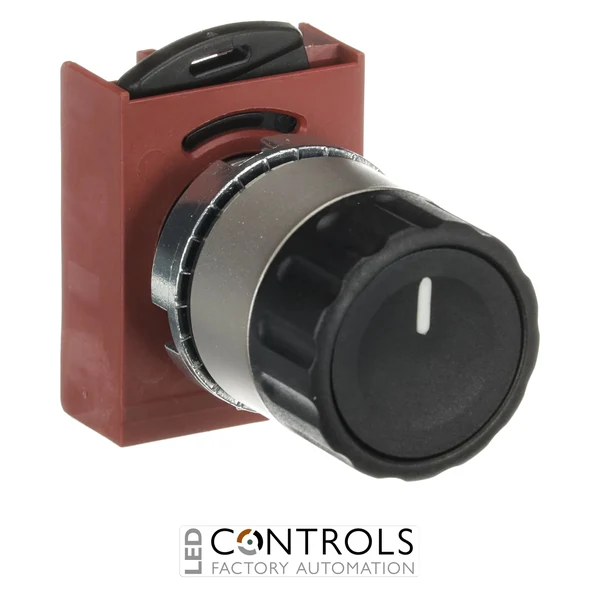

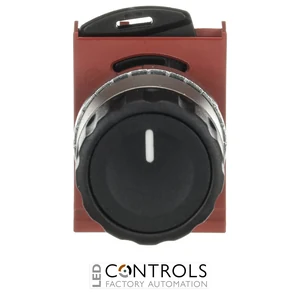

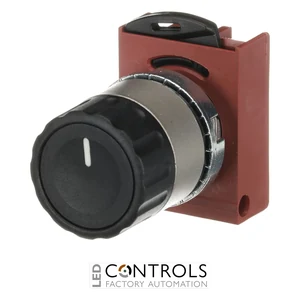

Why Choose the ABB P9MPS34G 3-Position Selector Pushbutton?
The ABB P9MPS34G is a robust 3-position maintained selector pushbutton designed for industrial machinery, control panels and operator stations. Part of the ABB P9M modular metal range, it combines pushbutton-style selector control with durable satin chrome metal construction for demanding industrial applications.
This specific P9MPS34G configuration uses CAM function 301 and provides three maintained selector positions identified as A, B and C. The positions are arranged at 45° intervals, allowing three distinct control selections from one compact operator. Its black actuator is non-illuminated and designed to remain in the selected position until deliberately changed.
The P9MPS34G is supplied with the satin chrome metal body and nut together with the holder. Designed for ABB's 22 mm modular metal pilot-device system, it provides IP66 front-side protection and is suitable for machinery, mining, construction and heavy-industry control applications.
Key Advantages
- 3-position selector pushbutton provides three selectable control states from one operator.
- Maintained operation keeps the chosen position engaged until deliberately changed.
- CAM function 301 provides a defined three-position contact-actuation sequence.
- Positions A, B and C are arranged at 45° intervals for intuitive operation.
- Black non-illuminated actuator provides a clear, functional industrial interface.
- Robust satin chrome metal body and nut for demanding environments.
- Holder included for integration with compatible ABB P9M contact blocks.
- IP66 front-side protection supports demanding industrial installations.
- Compatible with ABB's modular 22 mm P9M pilot-device platform.
Key Features
- ABB P9M modular metal range.
- Selector pushbutton operator.
- 3 selector positions.
- Positions identified as A / B / C.
- 45° movement between adjacent positions.
- Maintained operating principle.
- CAM function 301.
- Black actuator.
- Non-illuminated construction.
- Satin chrome metal body and nut.
- Holder included.
- Designed for the 22 mm modular metal range.
- IP66 front-side protection.
- Designed for mining, construction and heavy-industry applications.
The ABB P9MPS34G provides three maintained control positions identified as A, B and C, with 45° movement between adjacent positions. Unlike a spring-return operator, the P9MPS34G remains in the selected position until the operator deliberately moves it, making it suitable for applications requiring persistent selection between three operating states.
Its CAM function 301 defines the mechanical contact-actuation sequence for the three selector positions. The supplied holder can accommodate compatible ABB P9M contact blocks to create the required electrical switching arrangement, while the modular construction allows the operator and contact configuration to be adapted to the machine-control application.
Typical Applications
- Industrial machinery control panels.
- Three-state machine control functions.
- Operating-mode selection.
- Process and automation control systems.
- Operator control stations.
- Production and manufacturing equipment.
- Mining, construction and heavy-industry machinery.
- OEM automation panels and machine building.
