Why Choose the ABB P9MCD 2-Position Toggle Switch?

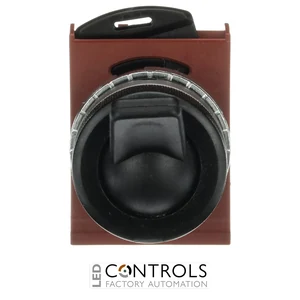

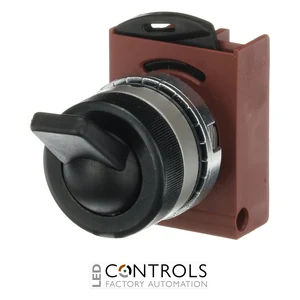

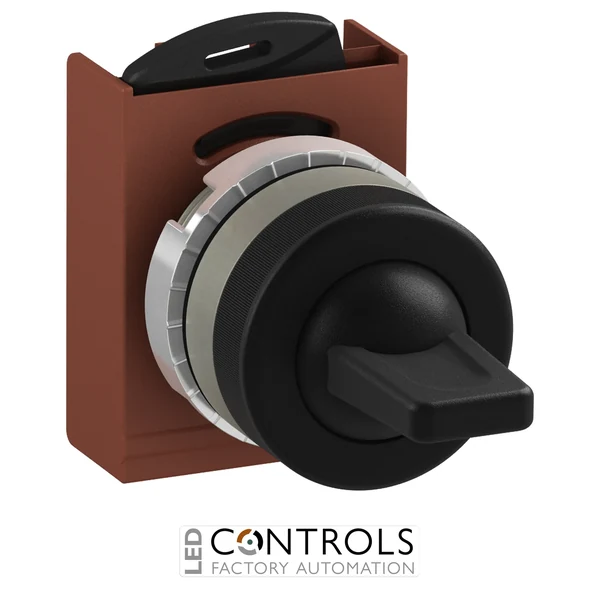

The ABB P9MCD is a robust 2-position maintained toggle switch designed for industrial machinery, control panels and operator stations. Part of the ABB P9M modular metal range, it combines a black toggle actuator with durable satin chrome metal construction for dependable operation in demanding industrial applications.
This specific P9MCD configuration uses CAM function D and provides two maintained operating positions. The toggle remains in the selected position until deliberately moved, making it suitable for machine functions where a persistent two-state command is required.
Each P9MCD reference includes the satin chrome metal body and nut together with the holder. The operator is non-illuminated, provides IP66 front-side protection and forms part of ABB's modular metal pilot-device platform for machinery, mining, construction and heavy-industry control applications.
Key Advantages
- 2-position toggle switch for straightforward industrial control functions.
- Maintained operation keeps the selected state engaged until deliberately changed.
- CAM function D provides the defined contact-actuation arrangement.
- Black toggle actuator provides a clear and practical operator interface.
- Non-illuminated design is ideal where visual indication is not required at the operator.
- Robust satin chrome metal body and nut for demanding industrial environments.
- Holder included for integration with compatible ABB P9M contact blocks.
- IP66 front-side protection supports use in challenging industrial installations.
Key Features
- ABB P9M modular metal range.
- Toggle switch operator.
- 2 operating positions.
- Maintained / stable operation.
- CAM function D.
- Black actuator.
- Non-illuminated.
- Satin chrome metal body and nut.
- Holder included.
- IP66 front-side protection.
- 0.073 kg catalogue weight.
- Part of ABB's industrial modular metal pilot-device platform.
Maintained Two-Position Toggle Control
The ABB P9MCD provides two stable operating positions, allowing an operator to select between two defined machine or process states. Because the toggle uses maintained operation rather than spring return, it remains mechanically in the selected position until deliberately moved to the alternative position.
Its CAM function D defines the mechanical contact-actuation arrangement when the operator is assembled with compatible ABB P9M contact blocks. The supplied holder and modular construction allow the required contact configuration to be selected for the electrical control circuit while retaining a robust metal operator interface.
Typical Applications
- Industrial machinery control panels.
- Two-state machine control functions.
- Operating-mode selection.
- Process and automation control systems.
- Operator control stations.
- Production and manufacturing equipment.
- Mining, construction and heavy-industry machinery.
- OEM automation panels and machine building.
