Why Choose the ABB P9MCB Toggle Switch?

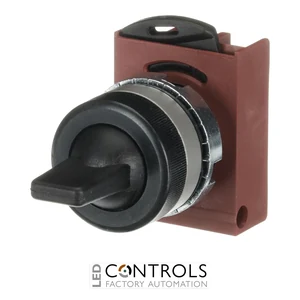

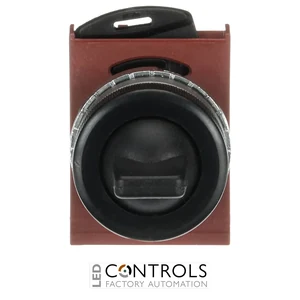

The ABB P9MCB is a robust 3-position maintained toggle switch from the ABB P9M modular metal range, designed for reliable operator control in demanding industrial applications. Supplied under ABB order code 1SFA184696R9006, it combines a black toggle actuator with a satin chrome metal body and nut, together with the holder required for integration into compatible P9M control assemblies.
The P9MCB provides 3-position maintained operation with positions A, B and C and uses ABB CAM function B. Its latching operating principle keeps the toggle in the selected position until deliberately moved by the operator, making it suitable for persistent mode, direction and function selection.
Designed for standard 22 mm industrial pilot-device mounting, the P9MCB features a non-illuminated black actuator and IP66 front protection. The P9M modular metal range is engineered for demanding machinery environments including mining, construction and heavy industry, combining rugged construction with modular control flexibility.
Key Advantages
- Heavy-duty ABB P9M modular metal toggle switch for industrial applications.
- 3-position maintained operation for stable machine and process selection.
- Positions A, B and C provide three selectable operating states.
- CAM function B for compatible P9M contact-block configurations.
- Black toggle actuator provides straightforward manual operation.
- Satin chrome metal body and nut provide a durable industrial operator interface.
- IP66 front protection supports demanding machinery environments.
- Standard 22 mm mounting simplifies integration into industrial control panels.
Key Features
- ABB P9M Pushbuttons modular metal range.
- 3-position toggle switch.
- Maintained / latching operating principle.
- Positions identified as A – B – C.
- CAM function B.
- Black toggle actuator.
- Non-illuminated design.
- Satin chrome metal body and nut.
- Holder included.
- 22 mm mounting-hole format.
- IP66 degree of protection from the front.
- Compatible with ABB P9M modular contact arrangements.
Reliable Three-Position Toggle Control for Industrial Machinery
Toggle switches provide operators with a direct mechanical interface for selecting between defined machine states or control functions. The ABB P9MCB offers three maintained positions, allowing a selected state to remain mechanically engaged until the operator deliberately moves the toggle to another position.
Its CAM function B arrangement is designed for use with compatible ABB P9M contact blocks, while the modular construction enables the switching configuration to be adapted to the application. The metal body, compact 22 mm format and IP66 front protection make the P9MCB particularly suitable for industrial machinery and heavy-duty operator-control installations.
Typical Applications
- Industrial machinery control panels.
- Three-mode operating selection.
- Operator control stations and consoles.
- Mining and materials-handling equipment.
- Construction machinery and equipment.
- Manufacturing and process-control systems.
- Heavy-industry automation installations.
