Why Choose the ABB P9MMN4F Joystick?

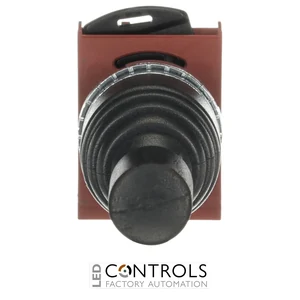

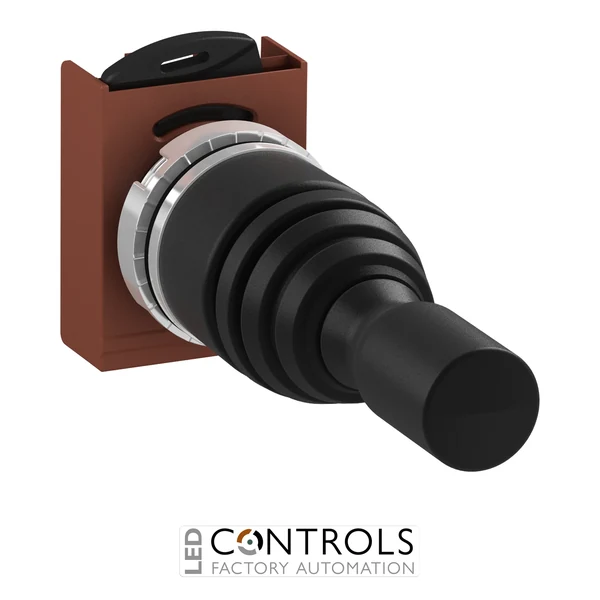

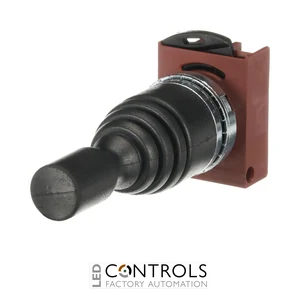

The ABB P9MMN4F is a rugged 4-position industrial joystick from the ABB P9M modular metal range, designed for reliable multi-directional control of machinery and industrial equipment. Supplied under ABB order code 1SFA184720R9006, it combines a black rubber joystick actuator with a satin chrome metal body and nut together with the holder required for installation.
The P9MMN4F provides 4-direction maintained operation in an up/down/left/right cross arrangement and is designed without a latching function. Its ergonomic black rubber actuator provides a positive manual interface for directional machine commands, making it suitable for applications requiring intuitive multi-axis operator control.
Designed for standard 22 mm centre mounting, the P9MMN4F provides IP66 front protection and NEMA 4X protection. Its robust modular metal construction and operating-temperature capability from -30 to +70 °C make it particularly suitable for mining, construction, materials handling and heavy-industrial machinery.
Key Advantages
- Heavy-duty ABB P9M modular metal joystick for industrial machinery.
- 4-direction actuation provides intuitive up/down/left/right machine control.
- Maintained operation for directional selections that remain in the chosen position.
- Designed without latching function.
- Black rubber joystick actuator provides a durable manual interface.
- IP66 front and NEMA 4X protection support demanding industrial environments.
- Standard 22 mm centre mounting simplifies control-panel installation.
- Satin chrome metal body, nut and holder are included.
Key Features
- ABB P9M Pushbuttons modular metal range.
- 4-position joystick.
- Up/down/left/right cross-direction arrangement.
- Maintained operating principle.
- Without latching function.
- Black rubber actuator.
- Non-illuminated design.
- Satin chrome metal body and nut.
- Holder included.
- 22 mm centre mounting-hole diameter.
- IP66 degree of protection.
- NEMA 4X protection classification.
- Designed for demanding mining, construction and heavy-industry applications.
Four-Direction Joystick Control for Industrial Machinery
Industrial joysticks provide operators with an intuitive interface for controlling machine movement and directional functions. The ABB P9MMN4F provides four-direction up/down/left/right actuation, making it suitable for equipment that requires multiple directional commands from a single compact operator.
The black rubber actuator provides a practical operating surface, while ABB's modular P9M architecture allows compatible contact blocks to be configured according to the required control circuit. Its satin chrome metal construction, IP66 protection and NEMA 4X classification make the P9MMN4F well suited to rugged machinery and heavy-duty industrial operator stations.
Typical Applications
- Industrial machinery directional control.
- Up/down/left/right machine movement commands.
- Materials-handling and conveying equipment.
- Hoisting and lifting machinery.
- Operator stations and industrial control consoles.
- Mining and construction equipment.
- Manufacturing and heavy-industry automation systems.
