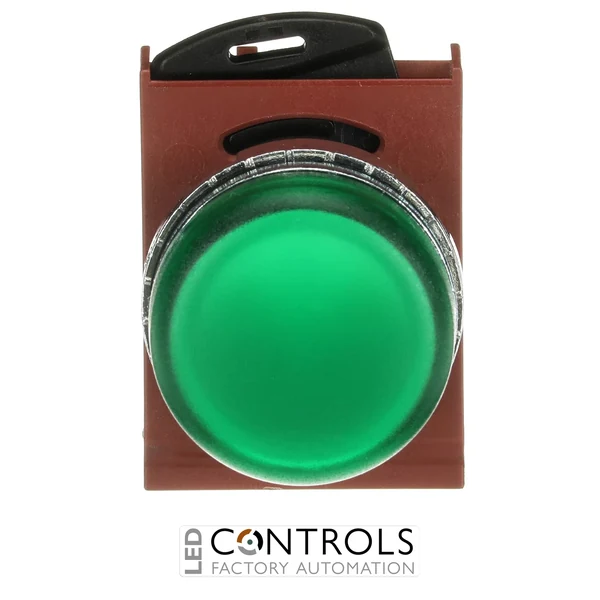

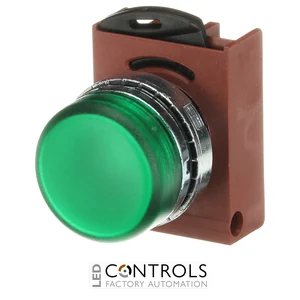

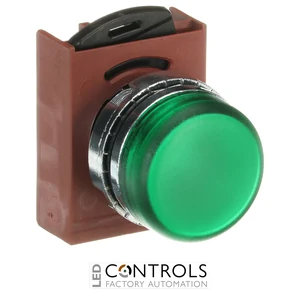

ABB P9MLVD is a green plastic-lens pilot light operator from the P9M modular metal range, supplied with a satin-chrome metal body, nut and holder for industrial control-panel status indication.
The ABB P9MLVD is a green pilot light operator from ABB's P9M modular metal pilot-device range, designed to provide clear visual status indication on industrial machinery, control panels and operator stations. Supplied under ABB order code 1SFA184792R9002, it combines a green plastic lens with the durable construction of ABB's modular metal control range.
The P9MLVD provides a dedicated visual signalling point for machine and process status indication. Its green lens makes it particularly suitable for indications such as running, ready, available, enabled or normal operating conditions where green indication is appropriate to the control philosophy of the installation.
Each P9MLVD reference includes the satin-chrome metal body and nut together with the holder. Its compact construction is designed for industrial panel mounting, with an overall front width of 29.7 mm, height of 39.4 mm and a 27.8 mm lens diameter.
Key Advantages
Clear green visual indication for machinery and control panels.
Part of ABB's robust P9M modular metal pilot-device range.
Plastic lens provides a clear illuminated signalling surface.
Durable satin-chrome metal body and nut.
Holder included with the pilot light operator.
Compact dimensions support space-efficient control-panel layouts.
Suitable for a wide range of machine and process status indications.
ABB modular construction supports integration with compatible P9M illumination components.
Key Features
ABB P9M modular metal range.
Pilot light operator.
Green indication colour.
Green plastic lens.
Non-pushbutton signalling function.
Satin-chrome metal body and nut.
Holder supplied with each reference.
27.8 mm lens diameter.
Suitable for panel thicknesses from 1–6 mm.
Compact modular construction for industrial control panels.
Clear Green Status Indication for Industrial Controls
Pilot lights provide operators with immediate visual feedback about the state of machinery and control systems. The green lens of the ABB P9MLVD makes it suitable for clearly identifiable status signalling, allowing equipment designers to create intuitive operator interfaces for production machinery, process systems and industrial automation.
The P9MLVD belongs to ABB's modular metal P9M family and is supplied as an operator with its satin-chrome metal body, nut and holder. This modular architecture allows the pilot light operator to be integrated with compatible P9M illumination components while maintaining a consistent appearance alongside other ABB P9M pushbuttons, selector switches and control operators.
Typical Applications
Industrial machinery control panels.
Machine running and ready indication.
Equipment status signalling.
Production and manufacturing machinery.
Process control panels.
Material handling and conveyor systems.
Operator stations and control consoles.
Building and infrastructure control panels.
OEM machinery and industrial automation systems.
Technical Specifications
Tick the specs you need, then view products that match.
Illumination
Illuminated
Device Type
Pilot / Indicator Light
Product Series
ABB Modular Metal (P9M)
Mounting Diameter
22 mm
Colour
Green
Series
P9M Pushbuttons / Modular Metal Range
ABB order code
1SFA184792R9002
Product type
Pilot light
Operator type
Plastic lens
Lens colour
Green
Indication colour
Green
Body material
Metal
Body finish
Satin chrome
Holder
Included
Lens diameter
27.8 mm
Overall height
39.4 mm
Overall width
29.7 mm
Overall depth
46.8 mm
Front projection
14 mm
Panel thickness
1–6 mm
Package quantity
1 piece
Weight
0.050 kg
Frequently Asked Questions
What is the ABB P9MLVD?
The P9MLVD is a green pilot light operator from ABB's P9M modular metal range, designed to provide visual status indication on industrial machinery and control panels.
What colour is the ABB P9MLVD?
The P9MLVD uses a green plastic lens to provide green visual indication when used with a compatible illumination arrangement.
Does the ABB P9MLVD include the holder?
Yes. The P9MLVD reference includes the satin-chrome metal body and nut together with the holder.
How large is the P9MLVD pilot light?
The P9MLVD has an overall front height of approximately 39.4 mm, a width of 29.7 mm and a lens diameter of approximately 27.8 mm.
What is the ABB order code for the P9MLVD?
The ABB order code for the P9MLVD green pilot light is 1SFA184792R9002.
Trusted ABB Industrial Signalling Technology
ABB P9M modular metal pilot devices provide durable and consistent operator-control and signalling solutions for industrial machinery, combining robust metal construction with modular components for professional control-panel applications.
Illumination
Illuminated
Device Type
Pilot / Indicator Light
Product Series
ABB Modular Metal (P9M)
Mounting Diameter
22 mm
Colour
Green
Series
P9M Pushbuttons / Modular Metal Range
ABB order code
1SFA184792R9002
Product type
Pilot light
Operator type
Plastic lens
Lens colour
Green
Indication colour
Green
Body material
Metal
Body finish
Satin chrome
Holder
Included
Lens diameter
27.8 mm
Overall height
39.4 mm
Overall width
29.7 mm
Overall depth
46.8 mm
Front projection
14 mm
Panel thickness
1–6 mm
Package quantity
1 piece
Weight
0.050 kg
