Why Choose the ABB P9MSVD0G Selector Switch?

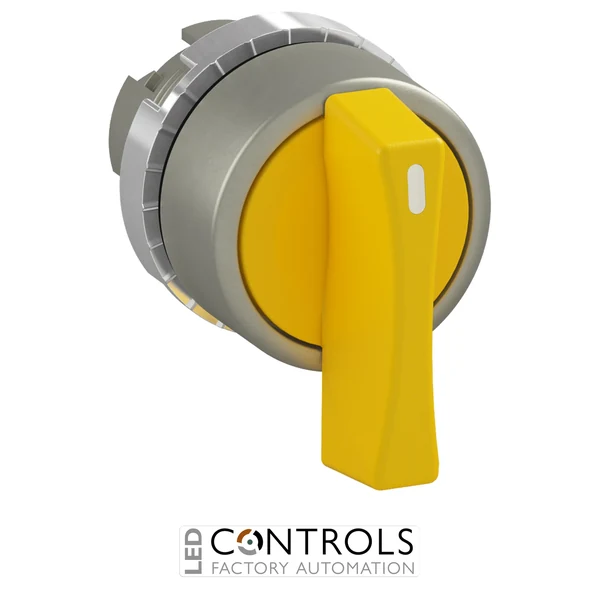

The ABB P9MSVD0G is a robust two-position maintained selector switch from ABB's P9M modular metal pilot-device range, designed for reliable operator control in mining, construction, heavy industry and general industrial machinery. Supplied under ABB order code 1SFA184822R9003, it features a highly visible yellow long rotary handle and rugged satin-chrome metal construction.
The P9MSVD0G uses CAM function D and provides A/C selector positions separated by a 90° operating angle. Its maintained, latching operation means the selector remains in the chosen position after the operator releases the handle, making it suitable for operating-mode selection and other persistent machine-control commands.
Designed for standard 22 mm panel mounting, the P9MSVD0G is non-illuminated and includes the satin-chrome metal body and nut together with the holder. IP66 front-side protection, NEMA 4X protection and an operating temperature range of -30 to +70 °C support dependable use in demanding industrial environments.
Key Advantages
- Robust two-position maintained selector switch for industrial control applications.
- Yellow long rotary handle provides high visibility and convenient operation.
- A/C selector positions with a 90° operating angle.
- CAM function D supports compatible ABB P9M contact arrangements.
- Maintained latching operation holds the selected position without continuous operator input.
- Durable satin-chrome metal body and nut.
- Standard 22 mm panel mounting simplifies control-panel integration.
- IP66 front-side and NEMA 4X protection suit demanding industrial environments.
Key Features
- ABB P9M modular metal range.
- Two-position selector switch.
- Maintained operating function.
- Latching switching action.
- No spring return.
- A/C selector positions.
- 90° switching angle.
- CAM function D.
- Long rotary handle.
- Yellow actuator.
- Non-illuminated design.
- Satin-chrome metal body and nut with holder.
Maintained Two-Position Control with CAM Function D
Maintained selector switches provide a clear and persistent means of choosing between machine modes or operating states. The ABB P9MSVD0G provides A and C positions separated by 90°, with the long handle remaining mechanically latched in the selected position until deliberately moved by the operator.
CAM function D supports different electrical switching arrangements using compatible ABB P9M contact blocks, including P9B10VN, P9B10FN, P9B01VN, P9B01FN and P9B11VN types. This modular architecture allows the operator and contact configuration to be matched to the requirements of the control circuit while retaining the rugged P9M metal front assembly.
Typical Applications
- Industrial machinery control panels.
- Operating-mode selection.
- Manual/automatic control selection.
- Mining and construction equipment.
- Heavy-industry machinery.
- Production and manufacturing equipment.
- Material handling and conveyor systems.
- Operator stations and control consoles.
- OEM machinery and industrial automation systems.
