Why Choose the ABB P9PDNV0 Lamp Block?

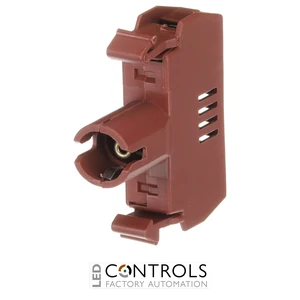

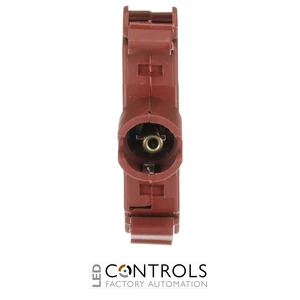

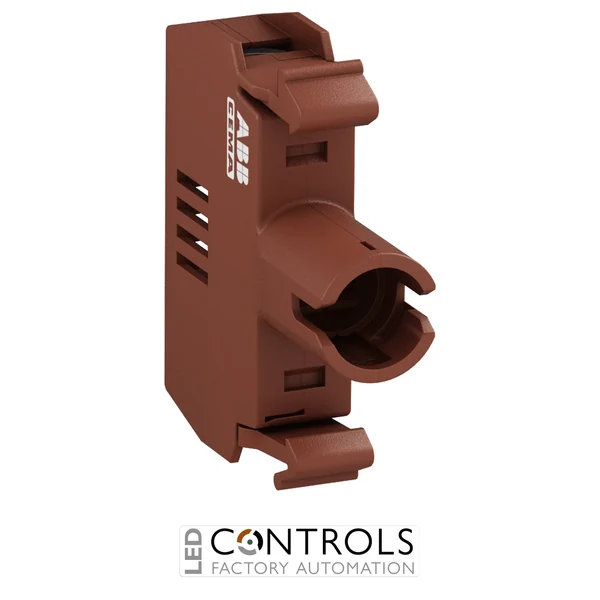

The ABB P9PDNV0 is a full-voltage lamp block from ABB's P9M modular metal pilot-device range, designed to provide illumination for compatible illuminated pushbuttons, selector switches and pilot lights. Supplied under ABB order code 1SFA187020R1080, it is a compact front-mounted module with screw-terminal connections for industrial control-panel applications.
The P9PDNV0 uses a BA9S lamp holder and is designed for direct full-voltage operation. Under IEC specifications it supports a BA9S lamp rated up to 380 V and 2 W, while UL/CSA applications support up to 250 V and 2 W. The replaceable bulb is not included, allowing the appropriate BA9S light source to be selected for the application.
With its brown housing, front-fastening design and screw terminals, the P9PDNV0 integrates into ABB's modular metal pilot-device system to provide a straightforward illumination solution. Its compact construction is suited to machinery, mining, construction and heavy-industry control equipment where dependable modular signalling is required.
Key Advantages
- Full-voltage lamp block for compatible ABB P9M illuminated operators.
- Supports BA9S replaceable lamps for flexible light-source selection.
- IEC rating supports lamps up to 380 V, 2 W.
- UL/CSA rating supports lamps up to 250 V, 2 W.
- Screw-terminal connections provide secure industrial wiring.
- Front mounting simplifies integration into compatible P9M assemblies.
- Compact 9.5 mm module width helps conserve panel space.
- Part of ABB's modular metal range for demanding industrial environments.
Key Features
- ABB P9M modular metal range.
- Full-voltage lamp block.
- Direct-voltage light-source supply.
- BA9S lamp holder.
- Replaceable bulb design.
- Bulb not included.
- Brown housing.
- Front fastening.
- Screw connections.
- Compact modular construction.
- Designed for industrial illuminated pilot devices.
Full-Voltage Illumination for Modular P9M Pilot Devices
The ABB P9PDNV0 provides the electrical connection and lamp holder required to illuminate compatible P9M operators without an integrated voltage-reduction stage. Its full-voltage design allows a correctly rated BA9S lamp to be connected directly to the applicable control voltage, with IEC applications supporting lamps up to 380 V and 2 W.
Because the lamp is replaceable and not supplied with the block, users can select a BA9S light source appropriate to the required voltage and signalling application. Screw terminals provide straightforward field wiring, while the narrow front-mounted module integrates efficiently into ABB P9M modular pilot-device assemblies.
Typical Applications
- ABB P9M illuminated pushbutton assemblies.
- ABB P9M illuminated selector switches.
- ABB P9M pilot-light assemblies.
- Industrial machinery control panels.
- Machine status and command indication.
- Mining and construction equipment.
- Heavy-industry control systems.
- Production and manufacturing machinery.
- OEM control panels and automation systems.
