Why Choose the ABB P9PDTV0 Lamp Test Block?

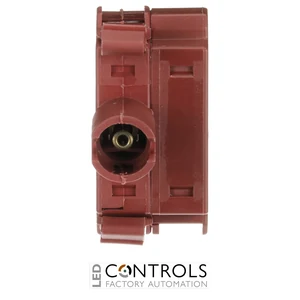

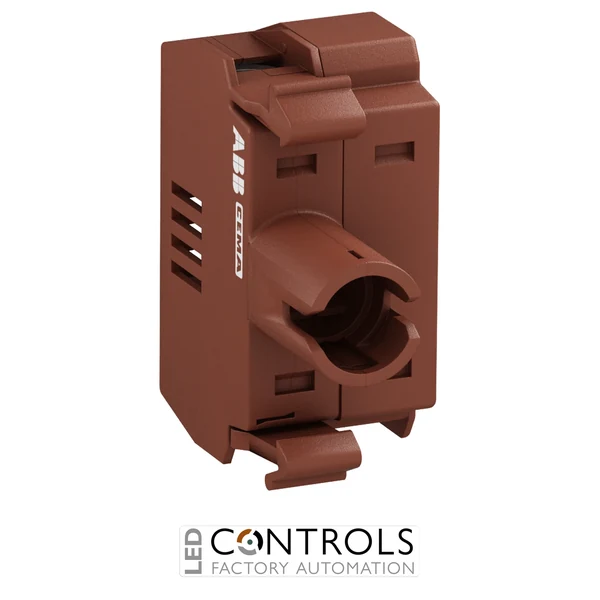

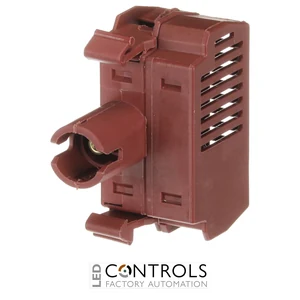

The ABB P9PDTV0 is a dedicated full-voltage lamp test block for ABB P9M modular metal pilot devices, providing a practical means of testing indication lamps in industrial control and signalling applications. Supplied under ABB order code 1SFA187027R8000, it is designed for integration with P9M pushbutton and signalling assemblies.
The P9PDTV0 uses screw terminals for secure electrical connections and is designed for BA9S lamps. Its lamp-test configuration enables an operator or control circuit to verify that the associated indication lamp is functioning, helping maintain reliable visual status indication in control panels, machinery and automation equipment.
For IEC applications, the P9PDTV0 supports a BA9S lamp up to 380 V and 2 W. The replaceable lamp is not included, allowing the appropriate lamp voltage and type to be selected for the application. Its compact modular construction is designed to fit the ABB P9M modular metal pilot-device system.
Key Advantages
- Dedicated lamp-test block for ABB P9M pilot devices.
- Full-voltage design for straightforward indication-lamp testing.
- Supports BA9S lamps up to 380 V, 2 W for IEC applications.
- Screw-terminal connections provide secure control-panel wiring.
- Compact modular format simplifies integration with P9M assemblies.
- Helps operators verify the correct operation of visual indication circuits.
Key Features
- ABB P9M Pushbuttons product family.
- Full-voltage lamp-test function.
- Designed for BA9S lamp technology.
- IEC lamp rating of up to 380 V, 2 W.
- Screw connection for electrical terminals.
- Modular construction for ABB P9M pilot-device assemblies.
- Lamp is not included, allowing application-specific selection.
- ABB order code 1SFA187027R8000.
Reliable Lamp Testing for Industrial Control Panels
Indicator lamps are widely used on industrial control panels to communicate machine status, operating conditions and process information. A lamp-test function allows the indication system to be checked so that a failed lamp can be identified before its absence causes confusion during machine operation or maintenance.
The ABB P9PDTV0 provides this function within the P9M modular metal pilot-device system. Its compact format and screw-terminal connections make it suitable for machine control stations, operator panels and other industrial signalling installations where dependable visual indication is required.
Typical Applications
- Industrial machine control panels.
- Operator control stations and consoles.
- Electrical switchboards and distribution panels.
- Process control and automation systems.
- Manufacturing and production machinery.
- P9M pilot-light and signalling assemblies.
