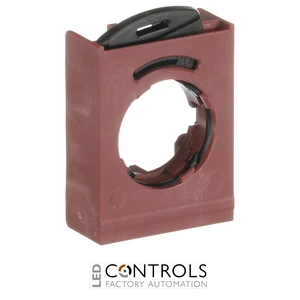

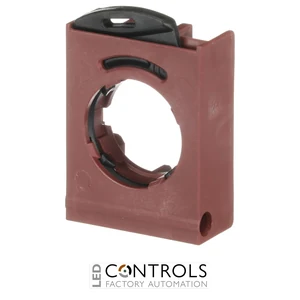

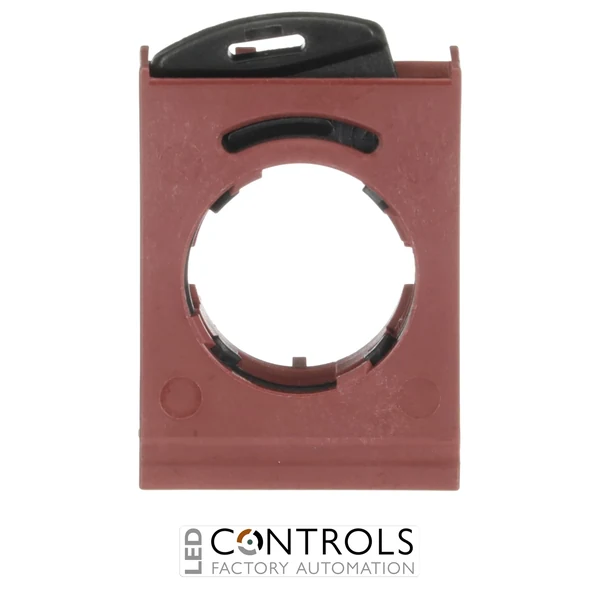

Why Choose the ABB P9ACFS3 3-Position Holder?
The ABB P9ACFS3 is a robust 3-position holder designed for ABB P9M modular metal pilot devices and associated contact blocks. Part of the ABB P9M Pushbuttons product group, it provides the mechanical mounting platform required for assembling compatible contact blocks behind pushbuttons, selector switches and other industrial control operators.
The P9ACFS3 belongs to ABB's modular metal range for demanding industrial applications, including mining, construction and heavy-industry equipment. Its modular construction allows compatible contact blocks to be selected according to the switching requirements of the application while maintaining a compact and organised pilot-device assembly.
Designed as a 3-position holder, the P9ACFS3 measures approximately 39.4 × 29.7 × 13.7 mm and weighs approximately 0.009 kg. Its brown/black construction and front-mounting system are designed specifically for compatible ABB modular metal control devices.
Key Advantages
- Dedicated 3-position holder for ABB modular metal pilot devices.
- Provides mounting positions for compatible P9M contact blocks.
- Compact construction for space-efficient control-panel assemblies.
- Modular design enables flexible contact-block configurations.
- Designed for demanding mining, construction and heavy-industry applications.
- Part of ABB's reliable P9M industrial pilot-device system.
Key Features
- ABB P9M Pushbuttons product group.
- 3-position holder configuration.
- Designed for front-mounted contact-block assemblies.
- Brown/black holder construction.
- Compatible with ABB P9M modular metal contact blocks.
- Compact dimensions of approximately 39.4 × 29.7 × 13.7 mm.
- Lightweight construction at approximately 0.009 kg.
- ABB order code 1SFA187841R8000.
Flexible Mounting for Modular Pilot Devices
Modular pilot-device systems allow machine builders and control-panel designers to configure switching functions according to the requirements of each operator. The ABB P9ACFS3 provides three mounting positions for compatible contact blocks, enabling flexible construction of pushbutton and selector-switch assemblies without requiring a dedicated operator for every contact configuration.
Its compact design helps maintain organised control-panel layouts, while the modular ABB P9M architecture simplifies component selection, installation and maintenance. The holder is particularly suited to industrial equipment where dependable mechanical retention and flexible contact arrangements are required.
Typical Applications
- Industrial pushbutton assemblies.
- Selector-switch control assemblies.
- Machine operator stations and control consoles.
- Electrical control panels and switchboards.
- Mining and construction equipment.
- Heavy-industry machinery and automation systems.
