Why Choose the ABB P9ACFS5 5-Position Holder?

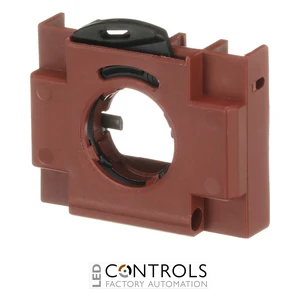

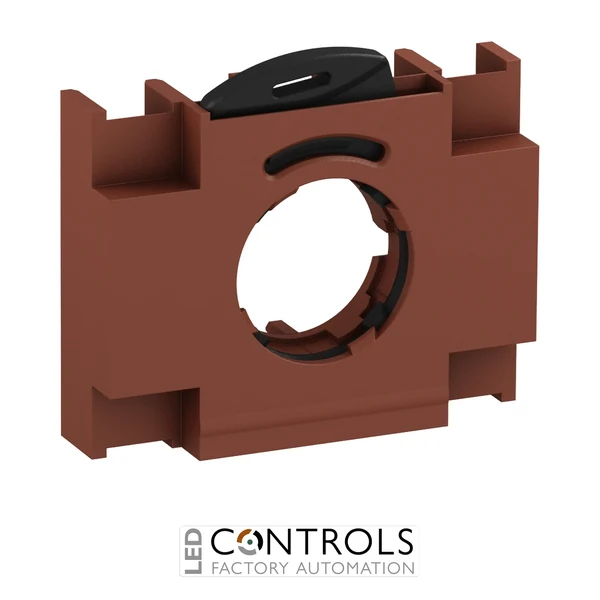

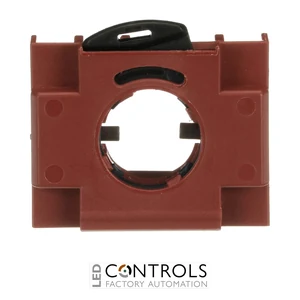

The ABB P9ACFS5 is a robust 5-position holder designed for ABB P9M modular metal pilot devices and compatible front-mounted contact blocks. Part of the ABB P9M Pushbuttons product group, it provides a reliable mounting platform for building configurable pushbutton, selector-switch and other industrial control assemblies.
The P9ACFS5 forms part of ABB's modular metal pilot-device range developed for demanding applications such as mining, construction and heavy industry. Its five-position configuration provides flexibility when arranging compatible contact blocks, allowing control functions to be tailored to the switching requirements of machinery and industrial automation systems.
Designed around the 22 mm modular pilot-device format, the P9ACFS5 features a brown/black construction and supports up to five mounting positions. With a weight of approximately 0.016 kg, it provides a compact and lightweight solution for assembling compatible ABB P9M control devices.
Key Advantages
- Dedicated 5-position holder for ABB P9M modular metal pilot devices.
- Supports flexible arrangements of compatible front-mounted contact blocks.
- 22 mm pilot-device format for industrial control applications.
- Compact modular construction simplifies control-device assembly.
- Designed for demanding mining, construction and heavy-industry environments.
- Part of ABB's flexible modular metal control and signalling range.
Key Features
- ABB P9M Pushbuttons product group.
- 5-position holder configuration.
- Designed for front-mounted contact blocks.
- Brown/black construction.
- Designed for the 22 mm modular metal pilot-device system.
- Compatible with ABB contact blocks intended for 3- and 5-position holders.
- Approximate individual weight of 0.016 kg.
- ABB order code 1SFA187842R8000.
Flexible Mounting for Modular Pilot Devices
Modular pilot-device systems allow control-panel designers and machine builders to configure switching functions according to the requirements of each operator. The ABB P9ACFS5 provides five mounting positions for compatible contact blocks, supporting more complex contact arrangements while maintaining a compact control-device assembly.
The holder is designed for use with ABB's modular metal pilot-device system, where operators, holders and contact blocks can be combined to create application-specific control functions. This modular approach simplifies assembly, component replacement and future modification of industrial control panels.
Typical Applications
- Industrial pushbutton assemblies.
- Selector-switch control assemblies.
- Machine operator stations and control consoles.
- Electrical control panels and switchboards.
- Mining and construction machinery.
- Heavy-industry and industrial automation equipment.
