Why Choose the ABB P9MSCI5C37 Key-Operated Selector Switch?

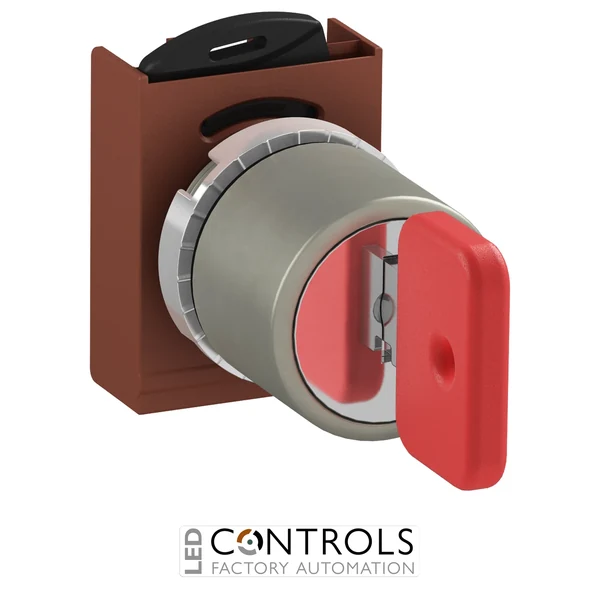

The ABB P9MSCI5C37 is a robust 2-position key-operated selector switch from the ABB P9M modular metal pilot-device range. Designed for demanding industrial control applications, it combines a satin-chrome metal bezel with a black actuator and distinctive red/metal key for controlled machine and process operation.
The P9MSCI5C37 features momentary operation with CAM function I. Position B is the maintained position, with spring return from C to B, while the key can be removed in position B only. This defined operating sequence makes the switch suitable for applications requiring controlled, key-authorised momentary commands.
Designed for a standard 22 mm mounting hole, the P9MSCI5C37 is non-illuminated and provides IP66 front protection. Its modular metal construction is intended for demanding applications including mining, construction and heavy industry, while compatibility with the ABB P9M system supports flexible industrial control-panel design.
Key Advantages
- 2-position key-operated selector switch for controlled industrial switching.
- Momentary operation with spring return from position C to B.
- Key code 37 with distinctive red/metal key.
- Key removable in position B only for a defined access-control sequence.
- IP66 front protection for demanding industrial environments.
- Robust modular metal construction for mining, construction and heavy-industry applications.
Key Features
- ABB P9M Pushbuttons product group.
- 2-position selector-switch configuration.
- Key-operated actuator.
- Momentary switching function.
- CAM function I.
- Maintained position B.
- Spring return from C to B.
- Key removable in position B only.
- Key code 37.
- Black actuator with red/metal key.
- Non-illuminated construction.
- Satin-chrome metal bezel.
- 22 mm mounting-hole diameter.
- IP66 front protection.
- ABB order code 1SFA192267R9006.
Controlled Momentary Operation for Industrial Machinery
Key-operated selector switches allow particular machine and process functions to be restricted to personnel possessing the appropriate key. The ABB P9MSCI5C37 combines this controlled access with a two-position momentary mechanism, maintaining position B and automatically returning from position C to B after operation.
The key can be removed in position B only, providing a defined normal position for key removal. Combined with the robust metal construction and IP66 front protection of the ABB P9M modular range, this makes the P9MSCI5C37 well suited to demanding industrial control stations and machinery installations.
Typical Applications
- Industrial machinery control panels.
- Key-authorised momentary machine commands.
- Machine operator stations and control consoles.
- Mining and construction machinery.
- Heavy-industry equipment.
- Manufacturing and process-automation systems.
