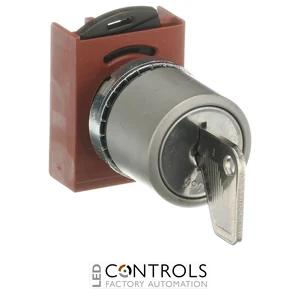

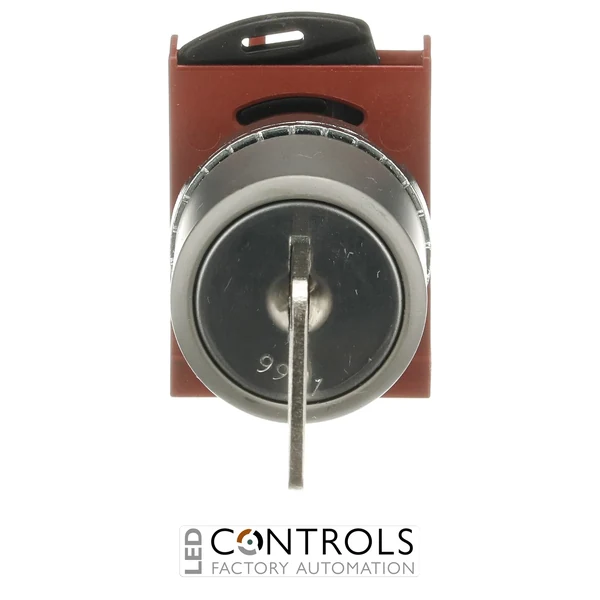

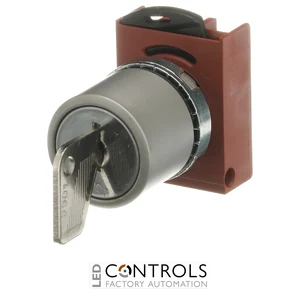

Why Choose the ABB P9MSCZ0T01 Key-Operated Selector Switch?
The ABB P9MSCZ0T01 is a robust 3-position key-operated selector switch designed for controlled operator functions in industrial machinery, control panels and automation systems. As part of the ABB P9M Pushbuttons modular metal range, it combines maintained switching operation with durable metal construction for demanding industrial applications.
This selector switch provides three maintained positions arranged A-B-C with 45° movement between adjacent positions. It uses key code 01 with a metal key head and CAM function Z, and the key can be removed in all three positions, providing flexibility for applications where authorised operators need to leave the control secured in any selected state.
Designed for a standard 22 mm mounting hole, the P9MSCZ0T01 features a non-illuminated operator, satin chrome metal construction and IP66 front protection. ABB order code 1SFA192690R9006 identifies this exact P9M selector switch, supplied with the metal body and nut, holder and two keys.
Key Advantages
- Secure 3-position key-operated selector switch for industrial controls.
- Maintained A-B-C positions remain selected until manually changed.
- Key code 01 with metal key head.
- Key can be removed in all positions for flexible access control.
- IP66 front protection supports installation in demanding industrial environments.
- Durable satin chrome metal construction for machinery and control-panel applications.
Key Features
- ABB P9MSCZ0T01 key-operated selector switch.
- 3 maintained positions.
- A-B-C position arrangement.
- 45° switching angle between adjacent positions.
- Key code 01.
- Metal key head.
- CAM function Z.
- Key removable in all positions.
- Non-illuminated operator.
- 22 mm mounting diameter.
- IP66 front protection rating.
- Satin chrome metal body and front ring.
Secure Three-Position Control for Industrial Machinery
Key-operated selector switches provide controlled access to machine functions by requiring a physical key before an operating state can be changed. The ABB P9MSCZ0T01 combines this controlled interface with three stable positions, making it suitable for applications requiring distinct operating modes or command states.
Because the key can be removed in all positions, an authorised operator can select any of the three maintained states and then remove the key to help prevent unauthorised changes. The modular 22 mm format allows the selector operator to be integrated with compatible ABB P9M contact blocks and control-panel components.
Typical Applications
- Industrial machinery control panels.
- Three-state operating-mode selection.
- Manual, off and automatic control arrangements.
- Operator control stations and consoles.
- Mining, construction and heavy-industry equipment.
- Manufacturing and industrial automation systems.
