Why Choose the ABB P9PLNVDB LED Block?

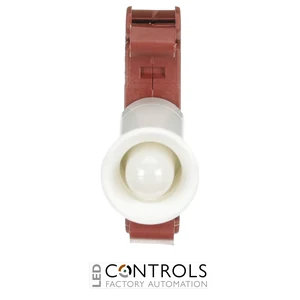

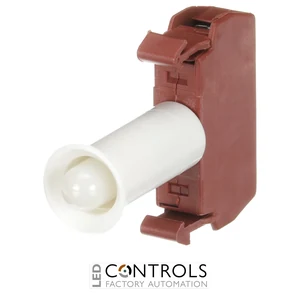

The ABB P9PLNVDB is a white integrated LED block designed for illuminated pilot devices within the ABB P9M Pushbuttons modular metal range. Providing permanent white illumination, it is engineered for industrial control panels, machinery and operator stations where clear and dependable visual indication is required.
The P9PLNVDB operates from a 24 V AC/DC supply and incorporates the LED light source directly into the block. Its front-mounting design enables straightforward integration with compatible ABB modular metal pilot devices, while screw connections provide secure electrical termination within industrial control assemblies.
ABB order code 1SFA197001R1015 identifies this specific permanent white 24 V AC/DC LED version. With a compact construction, an operating temperature range of -30 to +70 °C and a weight of approximately 0.020 kg, it provides a practical illumination solution for demanding industrial applications.
Key Advantages
- Integrated white LED light source for clear industrial indication.
- 24 V AC/DC rated voltage suitable for common industrial control circuits.
- Permanent illumination for continuous visual indication.
- Designed for front mounting in compatible ABB pilot-device assemblies.
- Wide -30 to +70 °C operating temperature range.
- Part of ABB's robust modular metal range for demanding industrial applications.
Key Features
- ABB P9PLNVDB LED block.
- Integrated white LED.
- 24 V AC/DC rated voltage.
- Permanent light function.
- Front mounting configuration.
- Screw connection for the auxiliary circuit.
- Illuminated modular pilot-device component.
- Terminal protection rating of IP2X.
- Rated frequency of 50 / 60 Hz.
- Part of the ABB P9M Pushbuttons modular metal range.
Reliable LED Illumination for Industrial Controls
Integrated LED blocks provide the light source required by compatible illuminated pushbuttons, pilot lights and other operator devices. The ABB P9PLNVDB produces permanent white illumination, allowing machine and process information to be presented clearly through compatible P9M operator components.
The integrated LED design eliminates the need for a separate replaceable lamp, while the 24 V AC/DC operating voltage makes the block suitable for widely used industrial control supplies. Its front-mounting configuration and screw terminals support efficient assembly and servicing in machinery and control-panel applications.
Typical Applications
- Industrial control panels and electrical cabinets.
- Illuminated pushbuttons and pilot devices.
- Machine status and process indication.
- Operator control stations and consoles.
- Manufacturing and automation equipment.
- Mining, construction and heavy-industry control systems.
