Why Choose the ABB P9PLNVDG Yellow LED Block?

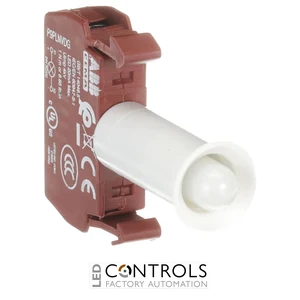

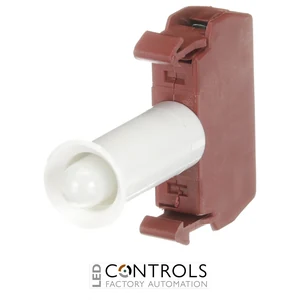

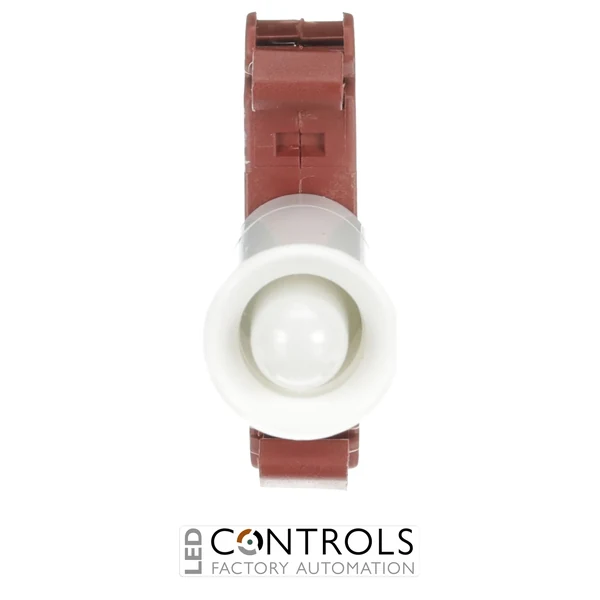

The ABB P9PLNVDG is a yellow integrated LED block from the ABB P9M modular metal pilot-device range. Designed for front mounting, it provides a permanent illuminated light source for compatible industrial pushbuttons and signalling devices used in control panels, machinery and operator interfaces.
The P9PLNVDG operates at a rated voltage of 24 V AC/DC and uses an integrated yellow LED, eliminating the need for a separate replaceable lamp within the block. Its permanent illumination function makes it suitable for clear status, condition and machine-state indication in industrial control applications.
The LED block features screw-clamp terminals, terminal protection to IP2X and front mounting within compatible ABB modular metal assemblies. With an individual weight of approximately 0.020 kg, the P9PLNVDG provides a compact illumination component identified by ABB order code 1SFA197002R1013.
Key Advantages
- Integrated yellow LED eliminates the need for a separate lamp.
- 24 V AC/DC operation suits common industrial control-voltage systems.
- Permanent illumination provides continuous visual indication when energised.
- Front mounting supports modular P9M pilot-device assembly.
- Screw-clamp terminals provide practical field wiring.
- IP2X terminal protection supports safe integration within control equipment.
- Designed for ABB's robust modular metal pilot-device range.
Key Features
- ABB P9M Pushbuttons product group.
- Integrated LED light source.
- Yellow illumination colour.
- 24 V AC/DC rated operating voltage.
- Permanent illumination function.
- Front-mounted configuration.
- Screw-clamp connection.
- IP2X terminal protection.
- Operating-temperature range of -30 to +70 °C.
- ABB order code 1SFA197002R1013.
Permanent Yellow LED Indication for Industrial Controls
The ABB P9PLNVDG combines the light source and LED electronics within a dedicated front-mounted block, providing a compact illumination solution for compatible modular metal pilot devices. When energised from a 24 V AC/DC control supply, the integrated yellow LED provides permanent visual indication for the associated operator or signalling device.
ABB's modular metal pilot-device range is designed for demanding industrial applications, including machinery used in mining, construction and heavy industry. The P9PLNVDG complements this modular architecture with screw-terminal wiring, a broad operating-temperature range and an integrated LED configuration that simplifies illuminated control-device assembly.
Typical Applications
- Illuminated industrial pushbuttons.
- Control-panel status indication.
- Machine operator stations.
- Industrial automation equipment.
- Process control and signalling panels.
- OEM machinery and equipment controls.
- Mining, construction and heavy-industry control systems.
