Why Choose the ABB P9PLNVDR LED Block?

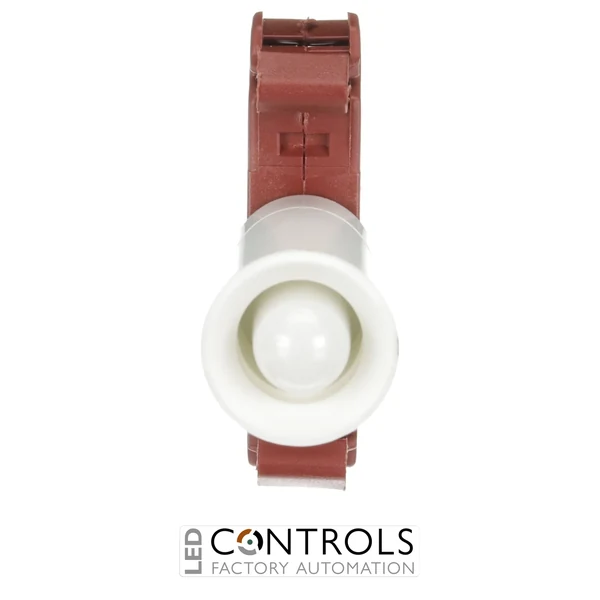

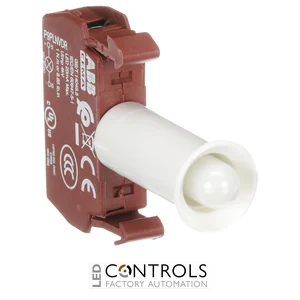

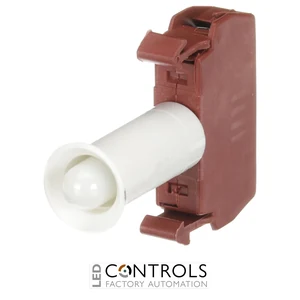

The ABB P9PLNVDR is a compact and reliable red integrated LED block designed for illuminated pilot devices in industrial control and signalling applications. Supplied under ABB order code 1SFA197004R1011, it forms part of the ABB P9M Pushbuttons modular metal range and provides dependable visual indication within machinery, control panels and operator stations.
This LED block operates from a 24 V AC/DC rated supply and produces a permanent red light for clear status indication. The integrated LED design eliminates the need for a separate replaceable lamp, helping simplify assembly and maintenance while providing the long operating life and low power consumption associated with LED technology.
Designed for front mounting within ABB P9M modular pilot-device assemblies, the P9PLNVDR provides a convenient illumination solution for compatible illuminated pushbuttons and signalling devices. Its compact construction and integrated red LED make it well suited to industrial automation systems requiring clear and dependable visual indication.
Key Advantages
- Compact integrated LED block designed for ABB P9M pilot devices.
- 24 V AC/DC rated voltage suitable for common industrial control circuits.
- Red permanent illumination for clear machine and process status indication.
- Integrated LED removes the requirement for a separate replaceable lamp.
- Front-mounted modular design simplifies integration with compatible P9M components.
- Lightweight construction suitable for industrial control panels and operator stations.
Key Features
- ABB P9M Pushbuttons modular metal range.
- Integrated red LED light source.
- 24 V AC/DC rated operating voltage.
- Permanent / steady light function.
- Designed for front mounting.
- Illuminated configuration for industrial signalling applications.
- Compact modular construction for compatible ABB pilot devices.
- IP2X terminal protection.
Reliable LED Indication for Industrial Control Systems
LED blocks provide the internal light source for compatible illuminated pilot devices, allowing machine operators to identify equipment states, process conditions and control functions quickly. A permanent red indication can be used as part of a clearly defined machine signalling scheme for applications requiring a highly visible illuminated status.
The ABB P9PLNVDR combines a 24 V AC/DC integrated LED with the modular construction of the P9M pilot-device range. Its front-mounted format allows straightforward assembly with compatible P9M components, making it suitable for new industrial control systems as well as maintenance and replacement applications.
Typical Applications
- Industrial control panels and operator stations.
- Illuminated pushbutton assemblies.
- Machine status and process indication.
- Manufacturing and production machinery.
- Automation and machine control systems.
- Industrial signalling and operator interfaces.
