Why Choose the ABB P9PLNVDV LED Block?

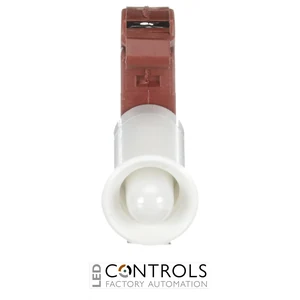

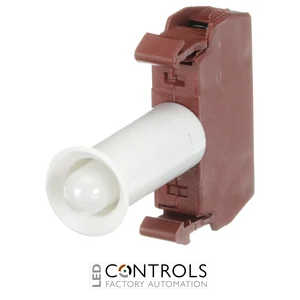

The ABB P9PLNVDV is a compact and reliable green integrated LED block designed for illuminated pilot devices in industrial control and signalling applications. Supplied under ABB order code 1SFA197005R1012, it forms part of the ABB P9M Pushbuttons modular metal range and provides dependable visual indication within machinery, control panels and operator stations.
This LED block operates from a 24 V AC/DC rated supply and produces a permanent green light for clear status indication. Its integrated LED construction eliminates the need for a separate replaceable lamp, helping simplify assembly and maintenance while providing the long operating life and low power consumption associated with LED technology.
Designed for front mounting within ABB P9M modular pilot-device assemblies, the P9PLNVDV provides a convenient illumination solution for compatible illuminated pushbuttons and signalling devices. Its compact construction, green illumination and industrial operating temperature range make it suitable for demanding machine-building, manufacturing and control applications.
Key Advantages
- Compact integrated LED block designed for ABB P9M pilot devices.
- 24 V AC/DC rated voltage suitable for common industrial control circuits.
- Green permanent illumination for clear machine and process status indication.
- Integrated LED removes the requirement for a separate replaceable lamp.
- Front-mounted modular design simplifies integration with compatible P9M components.
- Designed for reliable operation in demanding industrial environments.
Key Features
- ABB P9M Pushbuttons modular metal range.
- Integrated green LED light source.
- 24 V AC/DC rated operating voltage.
- Permanent / steady light function.
- Designed for front mounting.
- Illuminated configuration for industrial signalling applications.
- 50 / 60 Hz rated frequency.
- IP2X terminal protection.
- Compact modular construction for compatible ABB pilot devices.
Reliable LED Indication for Industrial Control Systems
LED blocks provide the internal light source for compatible illuminated pilot devices, allowing machine operators to identify equipment states, process conditions and control functions quickly. Green illumination is commonly incorporated into industrial signalling schemes where a clearly visible illuminated indication is required.
The ABB P9PLNVDV combines a 24 V AC/DC integrated LED with the modular construction of the P9M pilot-device range. Its front-mounted format allows straightforward assembly with compatible P9M components, making it suitable for new industrial control systems as well as maintenance and replacement applications.
Typical Applications
- Industrial control panels and operator stations.
- Illuminated pushbutton assemblies.
- Machine status and process indication.
- Manufacturing and production machinery.
- Mining, construction and heavy industry equipment.
- Automation and machine control systems.
