Why Choose the ABB P9PLNVJB LED Block?

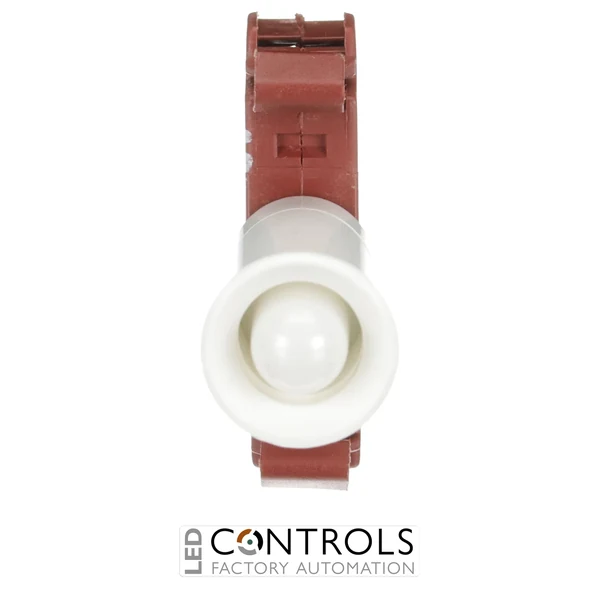

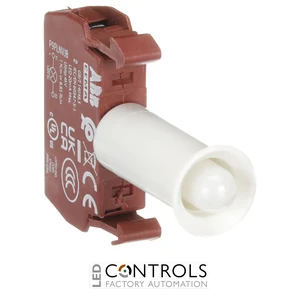

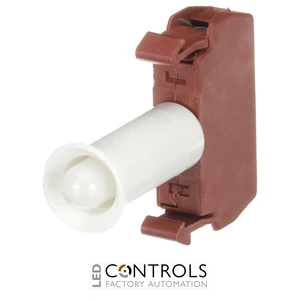

The ABB P9PLNVJB is a white integrated LED block designed for illuminated pilot devices within the ABB P9M Pushbuttons modular metal range. Providing permanent white illumination, it is engineered for industrial control panels, machinery and operator stations where clear and dependable visual indication is required.
The P9PLNVJB operates at a rated voltage of 120 V AC and incorporates the LED light source directly into the block. Its front-mounting configuration and screw-terminal connection make it straightforward to integrate with compatible ABB modular metal pilot devices in industrial control assemblies.
ABB order code 1SFA197007R1045 identifies this specific permanent white 120 V AC LED version. With dimensions of approximately 39.5 × 9.8 × 56 mm, an operating temperature range of -30 to +70 °C and a compact modular design, it provides reliable illumination for demanding industrial applications.
Key Advantages
- Integrated white LED light source for clear industrial indication.
- 120 V AC rated operating voltage for compatible control circuits.
- Permanent illumination for continuous visual indication.
- Designed for front mounting in compatible ABB pilot-device assemblies.
- Screw-terminal connection supports secure industrial wiring.
- Wide -30 to +70 °C operating temperature range for demanding environments.
Key Features
- ABB P9PLNVJB LED block.
- Integrated white LED.
- 120 V AC rated voltage.
- Permanent light function.
- Front mounting configuration.
- Screw connection for the auxiliary circuit.
- 50 / 60 Hz rated frequency.
- Illuminated modular pilot-device component.
- Designed for ABB's robust modular metal pilot-device system.
Reliable LED Illumination for Industrial Controls
Integrated LED blocks provide the light source required by compatible illuminated pushbuttons, pilot lights and other operator devices. The ABB P9PLNVJB provides permanent white illumination, allowing machine and process information to be presented clearly through compatible P9M operator components.
The integrated LED construction eliminates the need for a separate replaceable lamp, while the 120 V AC rating makes the block suitable for compatible industrial control supplies. Its front-mounting configuration, screw terminals and robust modular construction support efficient assembly and servicing in machinery and control-panel applications.
Typical Applications
- Industrial control panels and electrical cabinets.
- Illuminated pushbuttons and pilot devices.
- Machine status and process indication.
- Operator control stations and consoles.
- Manufacturing and automation equipment.
- Mining, construction and heavy-industry control systems.
