Why Choose the ABB P9PLNVJG LED Block?

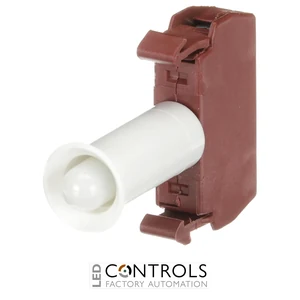

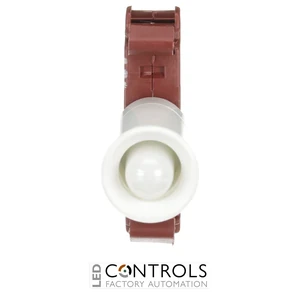

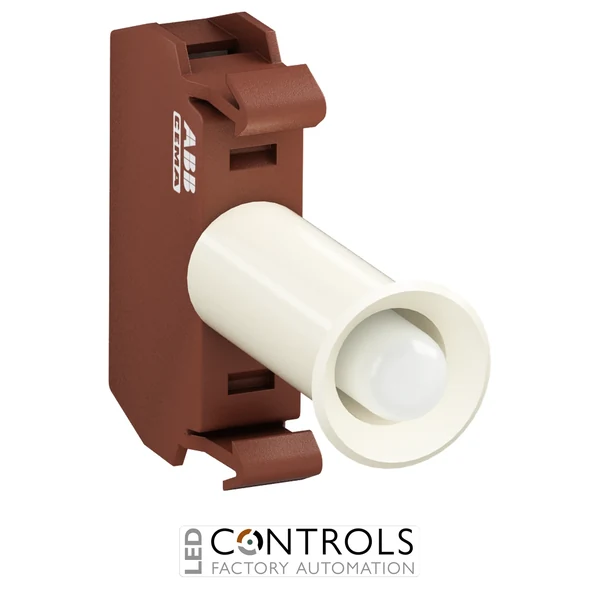

The ABB P9PLNVJG is a yellow integrated LED block designed for illuminated pilot devices within the ABB P9M Pushbuttons modular metal range. Providing permanent yellow illumination, it is engineered for industrial control panels, machinery and operator stations where clear and dependable visual status indication is required.
The P9PLNVJG operates at a rated voltage of 120 V AC and a rated current of 20 mA. Its integrated LED light source eliminates the need for a separate lamp, while the front-mounting configuration and screw connection enable straightforward integration into compatible ABB modular metal pilot-device assemblies.
ABB order code 1SFA197008R1043 identifies this specific permanent yellow LED version. The block measures approximately 39.5 × 9.8 × 56 mm, weighs approximately 0.018 kg and provides IP2X protection at the terminals, making it a compact illumination component for industrial operator controls.
Key Advantages
- Integrated yellow LED light source for clear visual signalling.
- 120 V AC rated operating voltage for compatible industrial control circuits.
- 20 mA rated current with efficient LED illumination.
- Permanent illumination for continuous status indication.
- Designed for front mounting in compatible ABB pilot-device assemblies.
- Screw connection supports secure and straightforward industrial wiring.
Key Features
- ABB P9PLNVJG LED block.
- Integrated yellow LED.
- 120 V AC rated operating voltage.
- 20 mA rated current.
- Permanent light function.
- Front mounting configuration.
- Screw connection for the auxiliary circuit.
- IP2X terminal protection.
- Integrated diode.
- Part of the ABB P9M Pushbuttons modular metal range.
Reliable Yellow LED Indication for Industrial Controls
Integrated LED blocks provide the illumination required by compatible pushbuttons, pilot lights and other operator devices. The ABB P9PLNVJG produces permanent yellow illumination, making it suitable for clearly communicating machine, process or equipment status through compatible P9M operator components.
The integrated LED design provides a compact lighting solution without requiring a separate lamp holder or replaceable bulb. Its 120 V AC rating, front-mounting arrangement and screw connection support efficient assembly and dependable operation in industrial machinery and control-panel applications.
Typical Applications
- Industrial control panels and electrical cabinets.
- Illuminated pushbuttons and pilot devices.
- Machine status and process indication.
- Operator control stations and consoles.
- Manufacturing and automation equipment.
- Mining, construction and heavy-industry control systems.
