Why Choose the ABB P9PLNVJL Blue LED Block?

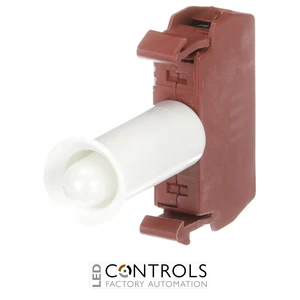

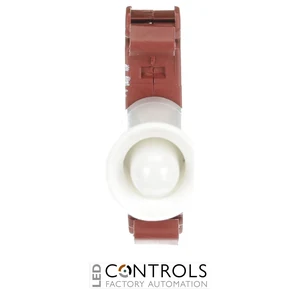

The ABB P9PLNVJL is a blue LED block designed for front mounting within ABB's P9M modular metal pilot-device system. It provides permanent blue illumination for compatible illuminated pushbuttons, selector switches and signalling devices used on industrial machinery and control panels.
Rated for 120 V AC, the P9PLNVJL incorporates its LED light source and is designed specifically for industrial control-circuit applications. The blue illumination provides a clear visual indication, while LED technology offers dependable, efficient operation without a separate replaceable lamp.
The P9PLNVJL uses screw-terminal connections and front mounting for straightforward integration with compatible ABB modular metal operators. Its compact construction and approximately 0.020 kg catalogue weight make it a practical illumination component for space-conscious industrial control assemblies.
Key Advantages
- Integrated blue LED light source for clear industrial indication.
- 120 V AC rated operating voltage for compatible control circuits.
- Permanent illumination for continuous visual signalling.
- Front-mounted design for ABB P9M modular metal pilot devices.
- Screw-terminal connection supports secure field wiring.
- Compact modular construction for industrial control panels and machinery.
Key Features
- ABB P9M Pushbuttons product group.
- Blue LED illumination.
- 120 V AC rated voltage.
- Standard / permanent light function.
- Integrated LED light source.
- Front mounting.
- Screw terminals for auxiliary-circuit connection.
- No separate lamp socket required.
- Designed for ABB 22 mm modular metal pilot devices.
- Approximate catalogue weight of 0.020 kg.
- ABB order code 1SFA197009R1044.
Integrated LED Illumination for Modular Pilot Devices
Illuminated pilot devices give operators immediate visual feedback about machine states, commands and process conditions. The ABB P9PLNVJL integrates a blue LED directly into the illumination block, providing a dedicated light source for compatible P9M modular metal operators without requiring a separate bulb and socket arrangement.
Front mounting and screw-terminal wiring support straightforward assembly and maintenance within industrial control systems. Its 120 V AC rating makes the P9PLNVJL suitable for compatible 120 V AC signalling circuits, while the modular design allows it to form part of application-specific ABB pilot-device configurations.
Typical Applications
- Illuminated industrial pushbuttons.
- Illuminated selector switches.
- Machine-status indication.
- Operator stations and control consoles.
- Electrical control panels and switchboards.
- Manufacturing and industrial automation equipment.
