Why Choose the ABB P9PLNVJR Red LED Block?

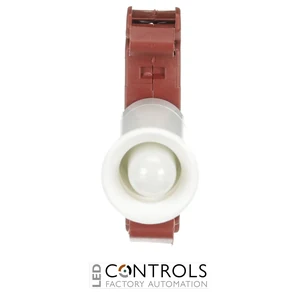

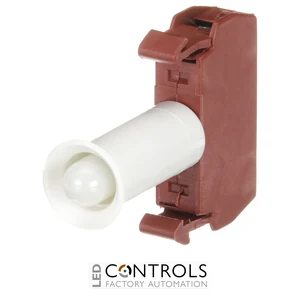

The ABB P9PLNVJR is a red LED block designed for front mounting within ABB's P9M modular metal pilot-device system. It provides permanent red illumination for compatible illuminated pushbuttons, selector switches and signalling devices used on industrial machinery and control panels.
Rated for 120 V AC at 50/60 Hz, the P9PLNVJR incorporates an integrated LED light source for dependable visual signalling. Its permanent red illumination is well suited to application-defined status, warning and machine-condition indication within industrial control systems.
The P9PLNVJR uses screw-clamp terminals and front mounting for straightforward integration with compatible ABB modular metal operators. Its compact construction measures approximately 9.8 × 39.5 × 56 mm and weighs approximately 0.020 kg, making it a practical illumination component for space-conscious control assemblies.
Key Advantages
- Integrated red LED light source for clear industrial visual indication.
- 120 V AC rated operating voltage for compatible control circuits.
- 50/60 Hz rated frequency.
- Permanent illumination for continuous visual signalling.
- Front-mounted design for ABB P9M modular metal pilot devices.
- Screw-clamp terminals support secure industrial wiring.
Key Features
- ABB P9M Pushbuttons product group.
- Red LED illumination.
- 120 V AC rated operating voltage.
- 50/60 Hz rated frequency.
- Permanent light function.
- Integrated LED light source.
- Front mounting.
- Screw-clamp connection.
- Operating ambient temperature from -30 to +70 °C.
- Compact 9.8 mm product width.
- ABB order code 1SFA197010R1041.
Integrated LED Illumination for Modular Pilot Devices
Illuminated pilot devices provide operators with immediate visual feedback about machine states, commands and process conditions. The ABB P9PLNVJR integrates a red LED directly into the illumination block, providing a dedicated permanent light source for compatible P9M modular metal operators without requiring a separate replaceable bulb.
Front mounting and screw-clamp wiring support straightforward assembly and servicing within industrial control systems. Its 120 V AC rating and 50/60 Hz compatibility make the P9PLNVJR suitable for corresponding industrial signalling circuits, while ABB's modular architecture supports flexible pilot-device configurations.
Typical Applications
- Illuminated industrial pushbuttons.
- Illuminated selector switches.
- Machine-status and warning indication.
- Operator stations and control consoles.
- Electrical control panels and switchboards.
- Mining, construction and heavy-industry equipment.
- Manufacturing and industrial automation systems.
