Why Choose the ABB P9PLNVJV Green LED Block?

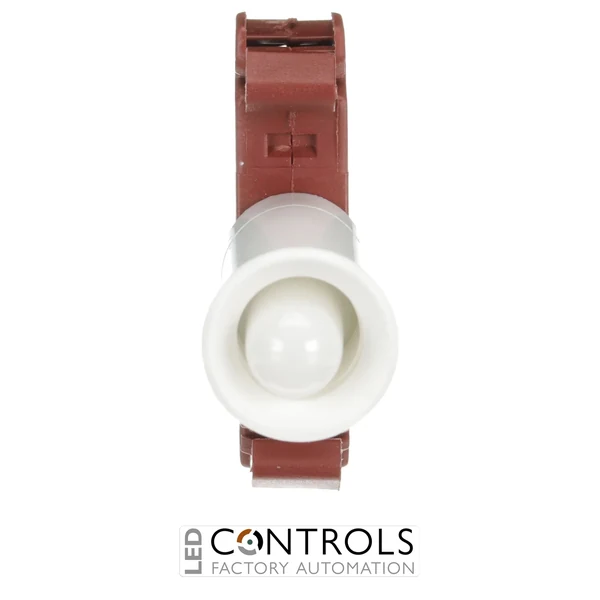

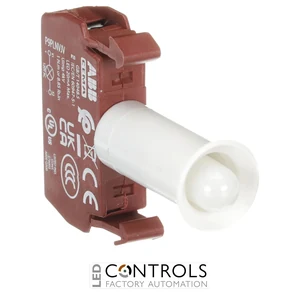

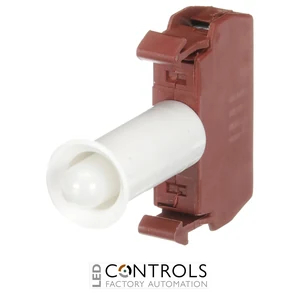

The ABB P9PLNVJV is a green integrated LED block from the ABB P9M Pushbuttons modular metal range. Designed for front mounting, it provides permanent illumination for compatible industrial pushbuttons and signalling devices used in control panels, machinery and operator interfaces.
The P9PLNVJV operates at a rated voltage of 120 V AC at 50/60 Hz and has a nominal current of 20 mA. Its integrated green LED provides a dedicated light source without requiring a separate replaceable lamp, making it a compact solution for illuminated industrial pilot-device assemblies.
Designed for demanding industrial environments, the P9PLNVJV features front mounting, screw terminals and terminal protection rated to IP20. Its compact 9.8 × 39.5 × 56 mm construction and approximately 0.020 kg weight support modular panel assembly, while ABB order code 1SFA197011R1042 identifies this exact LED block.
Key Advantages
- Integrated green LED provides a complete illuminated block without requiring a separate lamp.
- 120 V AC rated operating voltage for compatible industrial control circuits.
- 20 mA nominal current for efficient LED indication.
- Permanent illumination provides continuous visual indication while energised.
- Front mounting supports ABB's modular metal pilot-device architecture.
- Screw terminals provide straightforward industrial control-panel wiring.
- Designed for demanding applications including mining, construction and heavy industry.
Key Features
- ABB P9M Pushbuttons product group.
- Integrated LED light source.
- Green illumination colour.
- 120 V AC rated operating voltage.
- 50/60 Hz rated frequency.
- 20 mA nominal current.
- Permanent illumination function.
- Front-mounted configuration.
- Screw-terminal connection.
- IP20 terminal protection.
- Operating-temperature range of -30 to +70 °C.
- ABB order code 1SFA197011R1042.
Permanent Green LED Indication for Industrial Controls
The ABB P9PLNVJV combines its LED light source and illumination electronics within a dedicated front-mounted block. When supplied from a 120 V AC control circuit, the integrated green LED provides permanent visual indication for the associated compatible pushbutton or signalling device.
The P9PLNVJV forms part of ABB's modular metal pilot-device range developed for demanding industrial applications. Screw-terminal wiring, compact dimensions, a broad operating-temperature range and integrated LED construction make the block suitable for both new control-panel assemblies and compatible pilot-device maintenance or replacement applications.
Typical Applications
- Illuminated industrial pushbuttons.
- Control-panel status indication.
- Machine operator stations.
- Industrial automation equipment.
- Process control and signalling panels.
- OEM machinery and equipment controls.
- Mining, construction and heavy-industry control systems.
