Why Choose the ABB MPM1-10R Mushroom Pushbutton?
The ABB MPM1-10R, ABB order code 1SFA611124R1001, is a robust red mushroom pushbutton operator designed for industrial machinery, automation systems and operator control panels. As part of ABB's Pilot Devices product group, it provides a large, easily accessible actuator for reliable manual control in demanding industrial applications.

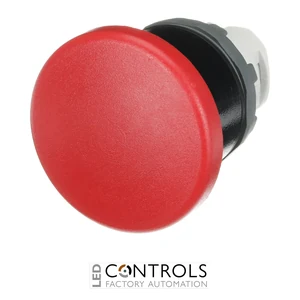

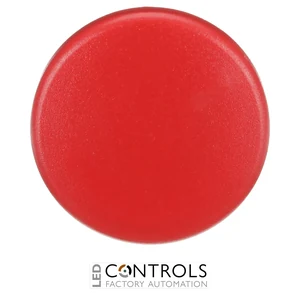

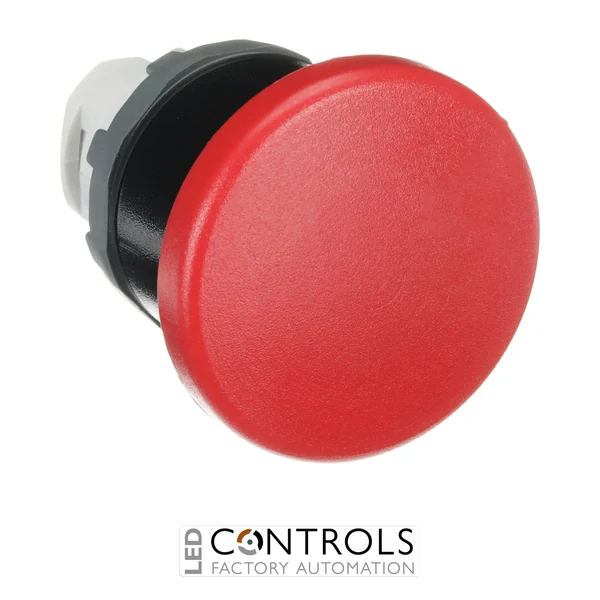

The MPM1-10R features a 40 mm red mushroom actuator with momentary spring-return operation. Its non-illuminated design and black plastic front ring provide a simple and highly visible operator interface, while ABB's modular construction allows compatible holders and contact blocks to be selected according to the required control circuit.
Designed for standard industrial panel mounting, the MPM1-10R fits a 22 mm nominal mounting system and provides IP66 front protection when correctly installed. The operator is suitable for machine control and process applications where a prominent momentary pushbutton is required, while its compact modular format simplifies integration into control stations and electrical panels.
Key Advantages
- Large 40 mm red mushroom actuator for clear and accessible operation.
- Momentary spring-return action for industrial control functions.
- Designed for standard 22 mm pilot-device mounting.
- IP66 front protection supports use in demanding industrial environments.
- Modular design allows compatible contact blocks to be selected for the required control circuit.
- Original ABB pilot device identified by order code 1SFA611124R1001.
Key Features
- ABB MPM1-10R mushroom pushbutton.
- 40 mm mushroom-style actuator.
- Red actuator for high visibility.
- Momentary / spring-return operation.
- Non-illuminated operator.
- Black plastic front ring.
- Designed for 22 mm nominal panel mounting.
- IP66 front protection rating.
- NEMA 4X front protection classification.
- Supplied as a modular operator without a contact block.
Mushroom pushbuttons provide a large operating surface that makes manual machine commands easy to locate and actuate. Momentary versions return automatically after being released, making them suitable for control functions where an electrical command is required only during operation of the pushbutton.
The ABB MPM1-10R combines a prominent 40 mm mushroom head with ABB's modular pilot-device system. Compatible holders and contact blocks can be selected separately to create the required electrical contact arrangement, providing flexibility for machine builders, panel manufacturers and industrial automation engineers.
Typical Applications
- Industrial machinery control panels.
- Operator stations and control consoles.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process control equipment.
- OEM machinery and industrial automation systems.
