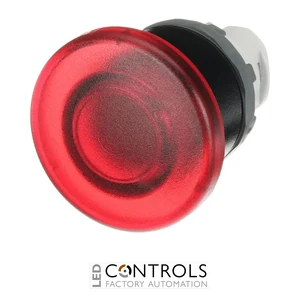

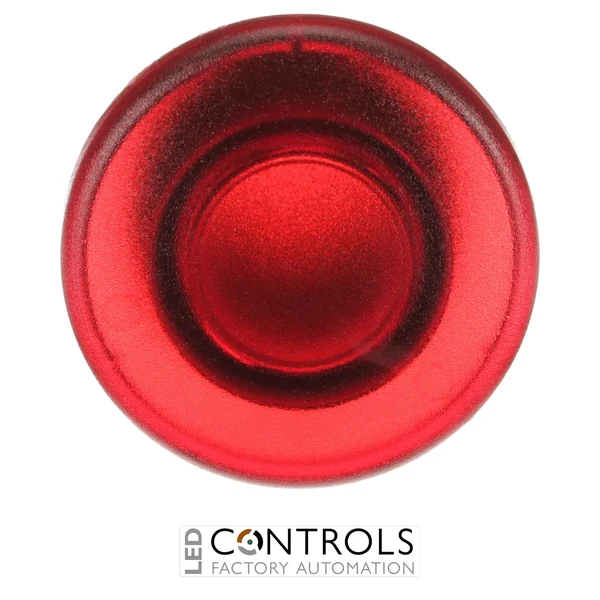

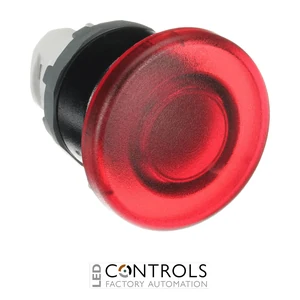

Why Choose the ABB MPM1-11R Mushroom Pushbutton?
The ABB MPM1-11R is a robust red illuminated momentary mushroom pushbutton designed for industrial machinery, control panels and operator stations. As part of the ABB modular plastic pilot device range, it combines a large, easily operated mushroom actuator with illumination capability and ABB’s flexible modular contact block system.
The MPM1-11R features a 40 mm diameter red mushroom actuator with a momentary operating function. Its illuminated design provides enhanced visual indication on machinery and control panels, while the modular construction enables compatible ABB contact blocks and illumination components to be selected according to the required control circuit.
Designed for standard 22.5 mm panel mounting, the MPM1-11R provides IP66 front protection and is suitable for operating temperatures from -25 to +70 °C. The operator is supplied without a contact block, allowing the required contact arrangement to be configured separately. ABB order code 1SFA611124R1101 identifies this exact MPM1-11R mushroom pushbutton.
Key Advantages
- Large 40 mm red mushroom actuator for convenient manual operation.
- Illuminated design provides clear visual indication at the operator station.
- Momentary operating action for industrial command and control functions.
- IP66 front protection for demanding industrial environments.
- Standard 22.5 mm panel mounting simplifies installation.
- Modular construction supports compatible ABB contact blocks and illumination components.
- Wide -25 to +70 °C operating temperature range.
Key Features
- ABB MPM1 modular mushroom pushbutton.
- 40 mm red mushroom actuator.
- Illuminated operator.
- Momentary function.
- Black plastic construction.
- 22.5 mm mounting hole diameter.
- IP66 front protection rating.
- Operating temperature range of -25 to +70 °C.
- No contact block supplied; compatible contact blocks are selected separately.
- ABB order code 1SFA611124R1101.
Illuminated Manual Control for Industrial Machinery
Mushroom pushbuttons provide a large operating surface for straightforward manual operation on machinery and industrial control panels. The momentary action of the ABB MPM1-11R enables temporary control commands, while its illuminated red actuator provides an additional visual indication that can be incorporated into the machine control system.
ABB’s modular pilot device architecture allows the MPM1-11R operator to be combined with compatible holders, contact blocks and illumination components. This modular approach enables machine builders and panel designers to configure the electrical switching and indication functions required for each application while retaining a consistent operator interface.
Typical Applications
- Industrial machinery control panels.
- Machine command and control functions.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Operator stations and control desks.
- Process machinery and automation equipment.
- OEM machine-building applications.
