Why Choose the ABB MPM2-10R Mushroom Pushbutton?
The ABB MPM2-10R is a robust red mushroom pushbutton operator designed for industrial machinery, automation equipment and electrical control panels. Part of the ABB MPM modular pilot device series, this non-illuminated operator combines a large, easily accessible mushroom head with momentary actuation for dependable manual control.

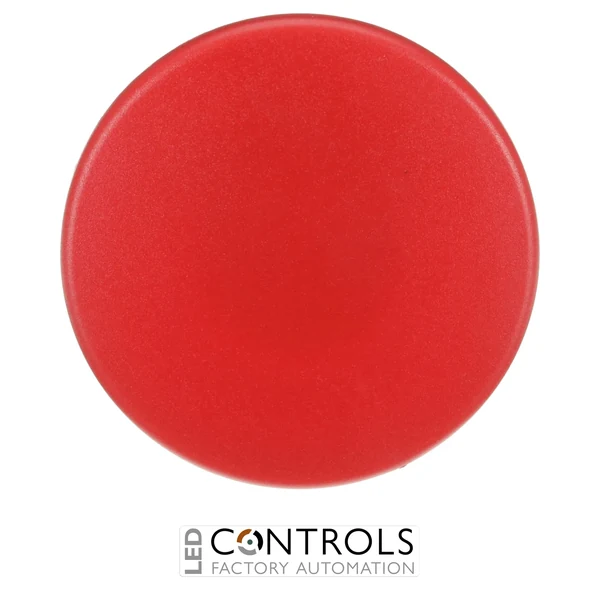

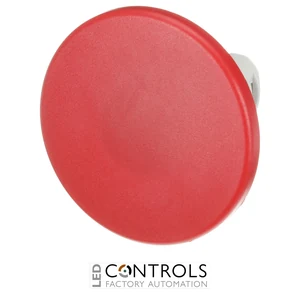

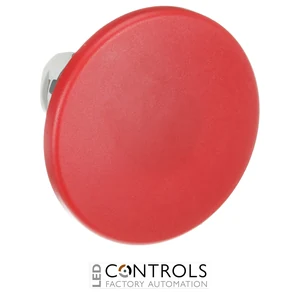

Featuring a prominent 60 mm diameter red mushroom head, the MPM2-10R provides a large operating surface that is easy to locate and actuate. The operator is unmarked and non-illuminated, making it suitable for applications where a simple, highly visible momentary control is required.
The MPM2-10R is designed for the standard 22 mm pilot-device format, with a nominal mounting-hole diameter of approximately 22.5 mm. Its modular construction allows compatible ABB contact blocks and accessories to be selected separately to suit the required electrical control function.
Key Advantages
- Large 60 mm red mushroom operator for easy manual actuation.
- Momentary pushbutton action for industrial control functions.
- Standard 22 mm modular pilot-device format.
- High IP66 front protection for demanding industrial environments.
- Wide operating temperature range of -25 to +70 °C.
- Modular design allows compatible contact blocks to be selected for the application.
Key Features
- ABB MPM mushroom pushbutton series.
- 60 mm diameter mushroom head.
- Red operator colour.
- Momentary actuation.
- Non-illuminated construction.
- Unmarked operator.
- Designed for approximately 22.5 mm mounting holes.
- IP66 front protection rating.
- Contact blocks are selected and ordered separately.
- ABB order code 1SFA611125R1001.
Large-Surface Control for Industrial Machinery
Mushroom pushbuttons provide a larger operating surface than conventional flush or extended pushbutton heads, making them useful where an operator needs a prominent and readily accessible manual control. The ABB MPM2-10R combines a 60 mm mushroom head with momentary operation for use in machinery and industrial control systems.
Its modular 22 mm format allows the operator to be combined with suitable ABB contact blocks according to the required electrical circuit. The IP66-rated front construction and broad operating temperature range make it suitable for control panels and machinery installed in demanding industrial environments.
Typical Applications
- Industrial machinery control panels.
- Operator control stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process control installations.
- OEM machinery and industrial automation systems.
