Why Choose the ABB MPM2-11Y Mushroom Pushbutton?

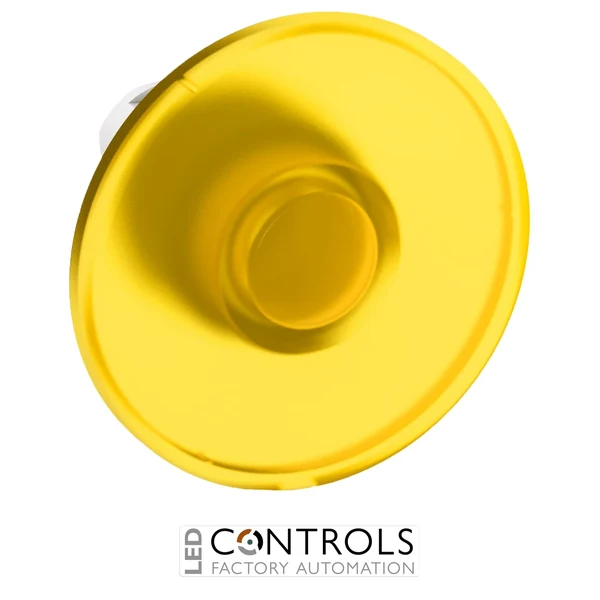

The ABB MPM2-11Y, ABB order code 1SFA611125R1103, is a robust yellow illuminated mushroom pushbutton operator designed for industrial machinery, automation systems and operator control panels. As part of ABB's Pilot Devices product group, it combines a large, highly visible actuator with illumination capability for clear manual control and status indication.
The MPM2-11Y features a 60 mm yellow mushroom actuator with momentary spring-return operation. Its illuminated design enables the operator to be combined with a compatible ABB lamp or LED block, while the black plastic front ring provides a durable and clearly defined interface for industrial control stations.
Designed for ABB's modular 22 mm pilot-device system, the MPM2-11Y fits a nominal 22 mm panel mounting system and uses an approximately 22.5 mm mounting hole. The operator provides IP66 and NEMA 4X front protection when correctly installed, making it suitable for demanding industrial environments.
Key Advantages
- Large 60 mm yellow mushroom actuator for prominent manual operation.
- Illuminated operator design for enhanced visibility and status indication.
- Momentary spring-return action for industrial control functions.
- Designed for standard 22 mm pilot-device mounting.
- IP66 and NEMA 4X front protection for demanding industrial environments.
- Modular construction allows compatible ABB holders, contact blocks and illumination components to be selected for the application.
Key Features
- ABB MPM2-11Y mushroom pushbutton.
- 60 mm mushroom-style actuator.
- Yellow actuator for high visibility.
- Illuminated operator design.
- Momentary / spring-return operation.
- Black plastic front ring.
- Designed for 22 mm nominal panel mounting.
- Approximately 22.5 mm mounting-hole diameter.
- IP66 front protection rating.
- NEMA 4X front protection classification.
- Modular operator for use with compatible ABB contact and illumination blocks.
Mushroom pushbuttons provide a large operating surface that makes manual machine commands easy to locate and actuate. The MPM2-11Y combines this prominent actuator format with illumination capability, allowing the control to remain highly visible and provide useful indication when integrated with a compatible ABB illumination block.
The ABB MPM2-11Y uses momentary spring-return operation rather than a latching mechanism, returning to its normal position after release. ABB's modular pilot-device architecture allows compatible holders, contact blocks and lamp or LED blocks to be selected according to the required electrical control and indication functions.
Typical Applications
- Industrial machinery control panels.
- Operator stations and control consoles.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process control and automation equipment.
- OEM machinery requiring illuminated operator controls.
