Why Choose the ABB MPD1-11G Double Pushbutton?
The ABB MPD1-11G, ABB order code 1SFA611130R1102, is a modular illuminated double pushbutton operator designed for industrial machinery, automation systems and operator control panels. As part of ABB's Pilot Devices product group, it combines two momentary pushbutton functions with a central green indicator, providing a compact operator interface for industrial control applications.

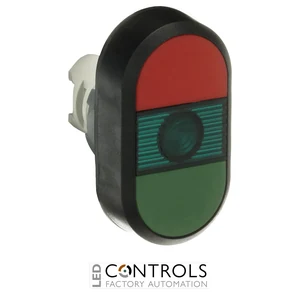

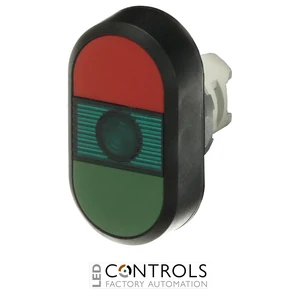

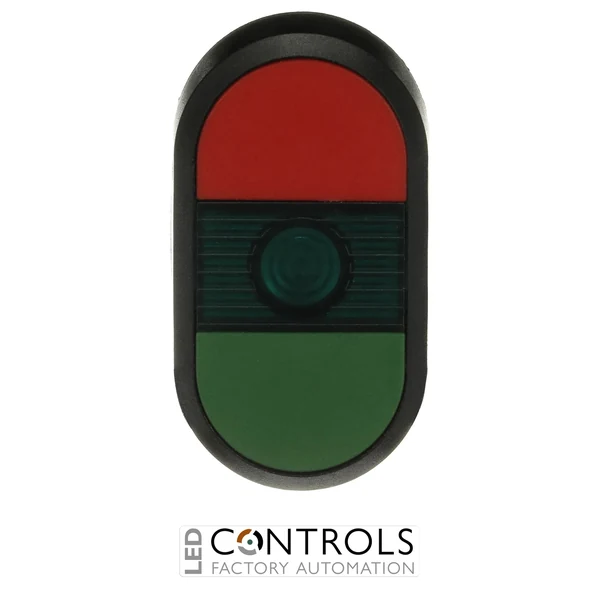

The MPD1-11G features green and red flush actuators with no text marking and a green indicator light. Both pushbutton functions use momentary operation, making the unit suitable for control circuits where commands are required only while an actuator is pressed. Its illuminated modular design enables compatible ABB holders, contact blocks and LED or lamp blocks to be selected according to the required control circuit.
With compact dimensions of approximately 30 × 54 × 38 mm and a weight of approximately 0.025 kg, the MPD1-11G provides two control functions and visual indication in a space-efficient format. Its IP66 front protection supports dependable use in industrial control panels and operator stations when correctly installed.
Key Advantages
- Compact double pushbutton operator combining two control functions in one device.
- Green and red flush momentary actuators provide clear visual differentiation.
- Integrated green indicator provides visual status indication.
- Illuminated modular design for industrial control and signalling applications.
- IP66 front protection supports installation in demanding industrial environments.
- Modular construction allows compatible ABB contact and illumination blocks to be selected for the application.
Key Features
- ABB MPD1-11G double pushbutton.
- Flush / flush actuator configuration.
- Green upper and red lower pushbutton actuators.
- Buttons supplied without text markings.
- Green indicator light.
- Illuminated operator design.
- Momentary pushbutton operation.
- IP66 front protection rating.
- Compact modular design for industrial operator panels.
- Designed for use with compatible ABB holders, contact blocks and LED or lamp blocks.
Double pushbuttons allow two related machine commands to be incorporated into a single compact operator, helping reduce the panel space required for industrial controls. The green and red actuators of the MPD1-11G provide immediate visual differentiation between the two controls, while the integrated green indicator adds a separate visual signalling function.
The ABB MPD1-11G uses ABB's modular pilot-device architecture, allowing compatible holders, contact blocks and LED or lamp blocks to be selected according to the required electrical functions. This modular approach makes the operator suitable for machine builders, control-panel manufacturers and automation engineers requiring flexible control and indication solutions.
Typical Applications
- Industrial machinery control panels.
- Operator stations and control consoles.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process control and automation equipment.
- OEM machinery requiring combined control and visual indication.
