Why Choose the ABB MPD2-11Y Double Pushbutton?
The ABB MPD2-11Y is an illuminated double pushbutton operator designed for industrial machinery, control panels and operator stations. Part of the ABB MPD modular pilot device range, it combines two control buttons and an indicator-light position in a compact operator suitable for standard industrial panel mounting.

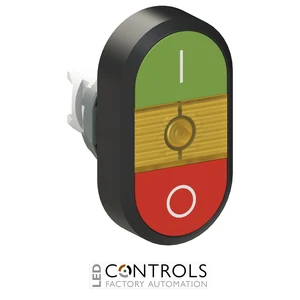

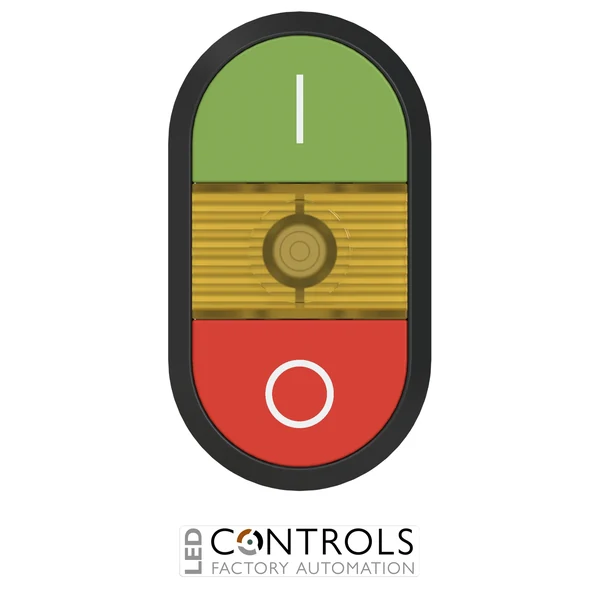

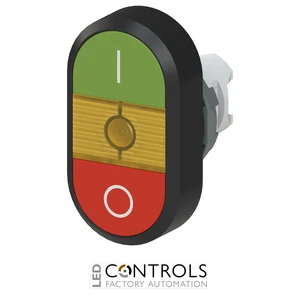

The MPD2-11Y features a green upper pushbutton marked “I” and a red lower pushbutton marked “O”, providing intuitive control identification for paired machine functions. A yellow indicator light provides visual status indication when the operator is assembled with a compatible ABB illumination unit.
Designed for a standard 22.5 mm mounting hole, the MPD2-11Y provides IP66 protection and is suitable for operating temperatures from -25 to +70 °C. Its modular construction allows the required contact blocks and illumination unit to be ordered separately, enabling the control configuration to be tailored to the application.
Key Advantages
- Compact double pushbutton operator combines two command functions in one panel position.
- Green “I” upper button and red “O” lower button provide clear operating identification.
- Yellow indicator light supports clear visual machine-status indication.
- IP66 protection rating for demanding industrial environments.
- Standard 22.5 mm panel mounting simplifies integration into control equipment.
- Modular ABB design allows contact blocks and illumination components to be selected separately.
Key Features
- ABB MPD modular double pushbutton.
- Illuminated double pushbutton design.
- Green upper button marked “I”.
- Red lower button marked “O”.
- Yellow indicator light.
- Flush button design.
- 22.5 mm mounting hole diameter.
- IP66 protection rating.
- Operating temperature range of -25 to +70 °C.
- Contact blocks and illumination unit are ordered separately.
- ABB order code 1SFA611131R1103.
Compact Dual Control for Industrial Machinery
Double pushbuttons provide two command functions within a compact operator footprint, helping machine builders make efficient use of available control-panel space. The green “I” and red “O” markings on the ABB MPD2-11Y provide an immediately recognisable interface for paired control commands, while the yellow indicator-light position adds a separate visual signalling function.
ABB’s modular pilot device architecture allows compatible contact blocks and an illumination unit to be selected according to the electrical requirements of the machine. This flexible construction makes the MPD2-11Y suitable for machine builders, panel builders and automation engineers requiring a compact and serviceable operator interface.
Typical Applications
- Industrial machinery control panels.
- Machine on/off command stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Operator stations and control desks.
- Process machinery and automation equipment.
- OEM machine-building applications.
