Why Choose the ABB MPD4-11Y Double Pushbutton?

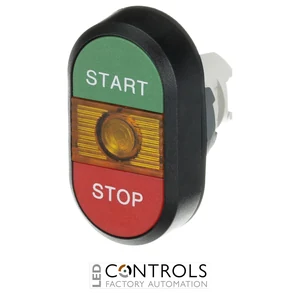

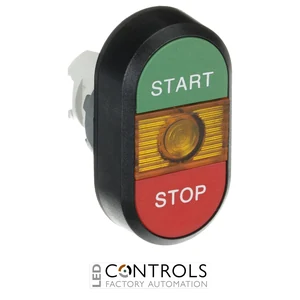

The ABB MPD4-11Y is an illuminated double pushbutton operator designed for industrial machinery, automation systems and electrical control panels. Part of the ABB modular plastic pilot device range, it combines two flush pushbutton actuators and a central indicator in one compact 22 mm control device.

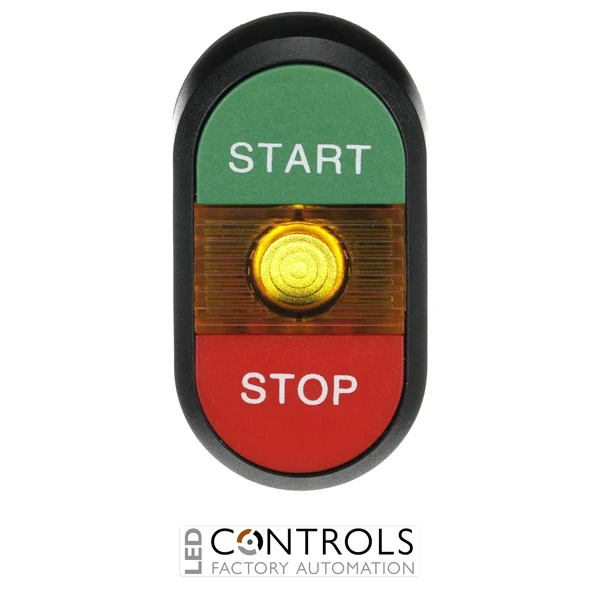

The MPD4-11Y features a green upper START button and a red lower STOP button, providing clear and intuitive machine control from a single operator position. A yellow indicator between the buttons provides visual signalling when used with a compatible illumination unit.
Designed for momentary spring-return operation, the MPD4-11Y is suitable for start/stop command circuits where the switching contacts are provided separately. Its modular construction enables compatible ABB contact blocks and an LED or lamp block to be selected according to the electrical and illumination requirements of the application.
Key Advantages
- Compact double pushbutton for START and STOP control.
- Green START and red STOP actuators provide clear functional identification.
- Integrated yellow indicator position for illuminated machine-status signalling.
- Momentary spring-return operation for industrial control circuits.
- Standard 22 mm modular pilot-device format simplifies panel integration.
- IP66 front protection supports reliable operation in demanding industrial environments.
Key Features
- ABB MPD modular double pushbutton series.
- Green upper actuator marked START.
- Red lower actuator marked STOP.
- Yellow central indicator.
- Flush / flush actuator design.
- Momentary spring-return function.
- Designed for 22 mm pilot-device mounting.
- Black plastic bezel.
- IP66 front protection rating.
- Mechanical durability of up to 2 million operations.
- Contact blocks and illumination unit are selected separately.
- ABB order code 1SFA611133R1103.
Compact START/STOP Control for Industrial Machinery
Double pushbuttons provide two related operator commands within a compact panel footprint. The ABB MPD4-11Y combines clearly marked START and STOP actuators with a yellow indicator, allowing machine commands and visual status indication to be grouped at a single control position.
Its modular construction allows compatible ABB contact blocks and illumination components to be configured for the required control circuit. The momentary spring-return mechanism, IP66-rated front and durable industrial construction make the MPD4-11Y suitable for frequent operation in machinery and automation applications.
Typical Applications
- Industrial machine START/STOP controls.
- Motor and conveyor control stations.
- Manufacturing and production equipment.
- Packaging and processing machinery.
- Electrical control panels and operator consoles.
- OEM machinery and industrial automation systems.
