Why Choose the ABB MPD5-11G Double Pushbutton?

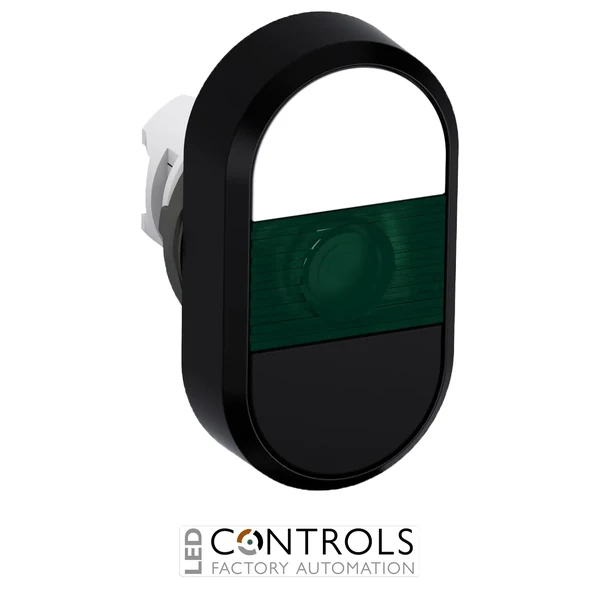

The ABB MPD5-11G, ABB order code 1SFA611134R1102, is a modular illuminated double pushbutton operator designed for industrial machinery, automation systems and operator control panels. As part of ABB's Pilot Devices product group, it combines two momentary pushbutton functions with a green indicator in a compact operator assembly.
The MPD5-11G features white and black flush actuators without text markings and a green indicator. Its momentary operating action makes it suitable for machine-control functions where the command is active while the relevant button is pressed. The modular plastic design enables compatible ABB contact blocks and illumination components to be selected according to the required control circuit.
Designed for ABB's 22 mm modular pilot-device system, the MPD5-11G has compact overall dimensions of approximately 30 × 54 × 38 mm. Its IP66 front protection and operating temperature range of -25 to +70 °C support dependable operation in demanding industrial environments.
Key Advantages
- Compact illuminated double pushbutton operator combining two control functions and indication.
- White and black flush actuators provide clear visual differentiation.
- Integrated green indicator provides a clear visual signalling function.
- Momentary operation suitable for industrial machine-control circuits.
- IP66 front protection supports use in demanding industrial environments.
- Modular ABB design allows compatible contact and illumination blocks to be selected for the application.
Key Features
- ABB MPD5-11G double pushbutton.
- Flush / flush actuator configuration.
- White upper and black lower pushbutton actuators.
- Both pushbuttons supplied without text markings.
- Green indicator.
- Illuminated operator design.
- Momentary operating action.
- Part of ABB's modular plastic pilot-device range.
- Designed for 22 mm pilot-device mounting.
- IP66 front protection rating.
- Supplied without contact blocks.
Double pushbuttons provide two related machine-control functions within a single compact operator, helping reduce the panel space required for industrial controls. The contrasting white and black flush actuators of the MPD5-11G make the two operating surfaces easy to distinguish, while the green indicator adds a separate visual signalling function.
The ABB MPD5-11G forms part of ABB's modular plastic pilot-device system. Compatible contact blocks and illumination components can be selected separately according to the required electrical functions, providing machine builders and control-panel manufacturers with a flexible solution for industrial control and indication.
Typical Applications
- Industrial machinery control panels.
- Operator stations and control consoles.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process control and automation equipment.
- OEM machinery requiring combined pushbutton control and visual indication.
