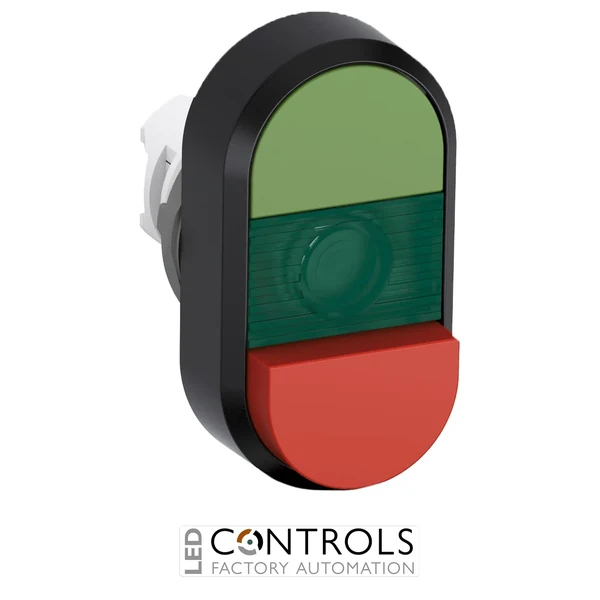

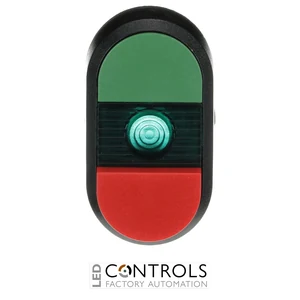

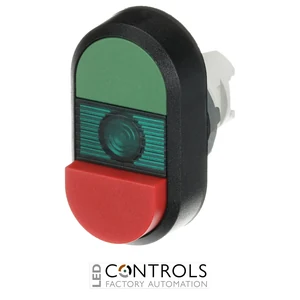

ABB MPD12-11G illuminated modular double pushbutton with flush/extended green and red actuators designed for industrial control panels and automation systems.
The ABB MPD12-11G is a compact and reliable illuminated modular double pushbutton designed for industrial control panels, machine automation and electrical control applications. As part of ABB's Modular Plastic Range of pilot devices, it provides a flexible operator interface solution with durable construction, easy installation and dependable switching performance.
This double pushbutton features a momentary flush/extended actuator configuration with green/red actuators and a green illuminated indicator. Its modular design allows straightforward integration into control systems while supporting reliable operation in demanding industrial environments.
With its robust black plastic bezel, illuminated indication and high front protection rating, the ABB MPD12-11G is suitable for use in machinery, automation equipment and electrical cabinets where clear operator control and status indication are required.
Key Advantages
Compact double pushbutton for industrial control applications.
Momentary operation for reliable machine control functions.
Green/red actuator arrangement with green illuminated indicator for clear operator feedback.
Part of the flexible ABB Modular Plastic Range.
Durable construction with high mechanical lifetime.
Tool-free installation concept for efficient panel assembly.
Key Features
ABB MPD12-11G Modular Double Pushbutton.
Flush/extended actuator design.
Green/red actuator with green indicator.
Illuminated operator device.
Black plastic bezel material.
Momentary pushbutton function.
Front protection rating up to IP66.
Mechanical durability rated up to 2 million operations.
Reliable Operator Control for Industrial Automation
Double pushbuttons such as the ABB MPD12-11G provide operators with intuitive machine control and visual indication in industrial environments. Their modular construction allows control devices to be configured efficiently for different automation requirements.
The ABB Modular Plastic Range combines flexible configuration options with reliable mechanical performance, making these devices suitable for modern control panels, production machinery and industrial electrical systems.
Typical Applications
Industrial control panels.
Machine automation systems.
Production and packaging machinery.
OEM electrical cabinets.
Manufacturing equipment.
Industrial operator stations.
Technical Specifications
Tick the specs you need, then view products that match.
Illumination
Illuminated
Device Type
Multiple Pushbutton
Product Series
ABB Modular
Mounting Diameter
22 mm
Colour
Red
Operation
Spring return (momentary)
Series
Modular Plastic Range
Product type
Double pushbutton
Order code
1SFA611141R1102
Actuator type
Flush/extended
Function
Momentary
Illumination
Illuminated
Actuator colour
Green/red with green indicator
Bezel material
Black plastic
Front protection rating
IP66
Operating temperature
-25 to +70 °C
Storage temperature
-40 to +85 °C
Mechanical durability
2 million operations
Dimensions (W × H × D)
approx. 54 × 30 × 43 mm
Weight
approx. 0.025 kg
Frequently Asked Questions
What is the ABB MPD12-11G used for?
The ABB MPD12-11G is used as a momentary double pushbutton for operator control and status indication in industrial automation and control panels.
What type of actuator does this pushbutton have?
The MPD12-11G features a flush/extended actuator design with green/red actuators and a green illuminated indicator.
Is the ABB MPD12-11G illuminated?
Yes, the MPD12-11G is an illuminated double pushbutton with a green indicator.
What protection rating does this pushbutton provide?
The device provides a front protection rating of IP66 for reliable operation in industrial environments.
Where is the ABB MPD12-11G typically installed?
The pushbutton is typically installed in electrical control panels, machine interfaces and industrial automation systems.
Trusted by Industrial Automation Engineers
ABB Modular Plastic Range pilot devices are widely used in industrial control applications where reliable operator interfaces, flexible configuration and durable performance are required.
Illumination
Illuminated
Device Type
Multiple Pushbutton
Product Series
ABB Modular
Mounting Diameter
22 mm
Colour
Red
Operation
Spring return (momentary)
Series
Modular Plastic Range
Product type
Double pushbutton
Order code
1SFA611141R1102
Actuator type
Flush/extended
Function
Momentary
Illumination
Illuminated
Actuator colour
Green/red with green indicator
Bezel material
Black plastic
Front protection rating
IP66
Operating temperature
-25 to +70 °C
Storage temperature
-40 to +85 °C
Mechanical durability
2 million operations
Dimensions (W × H × D)
approx. 54 × 30 × 43 mm
Weight
approx. 0.025 kg
