Why Choose the ABB MPD12-11Y Double Pushbutton?
The ABB MPD12-11Y is an illuminated double pushbutton operator designed for industrial machinery, control panels and operator stations. As part of the ABB modular plastic pilot device range, it combines two momentary control functions with a visual indicator in a compact operator designed for standard industrial panel mounting.

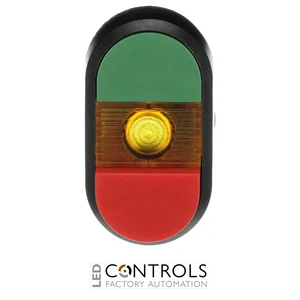

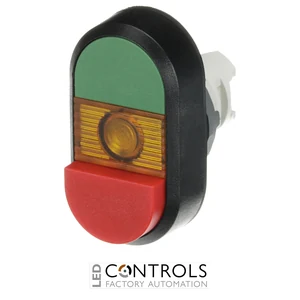

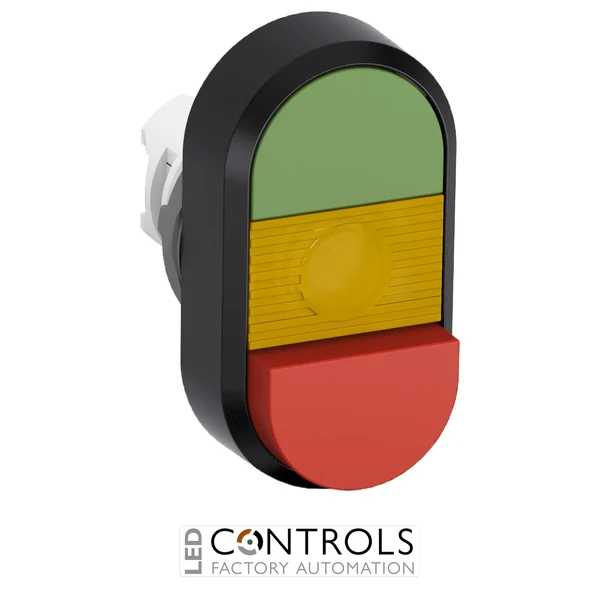

The MPD12-11Y features a green flush upper pushbutton and a red extended lower pushbutton, both supplied without text or symbols. A yellow indicator light provides visual signalling when the operator is assembled with the appropriate ABB illumination unit, while the extended lower actuator provides clear physical differentiation between the two control functions.
Designed for 22.5 mm panel mounting, the MPD12-11Y provides IP66 front protection and operates across an ambient temperature range of -25 to +70 °C. Contact blocks and the illumination unit are selected separately as part of ABB’s modular pilot-device system. ABB order code 1SFA611141R1103 identifies this exact MPD12-11Y double pushbutton.
Key Advantages
- Compact double pushbutton operator combines two control commands in one panel position.
- Green upper and red lower actuators provide clear visual differentiation.
- Flush upper and extended lower button arrangement provides tactile differentiation between commands.
- Yellow indicator light supports visual machine-status signalling.
- Momentary pushbutton operation for industrial control circuits.
- IP66 front protection for demanding industrial environments.
- Standard 22.5 mm panel mounting simplifies integration into machinery and control panels.
- Modular construction allows compatible ABB contact blocks and illumination components to be selected separately.
Key Features
- ABB MPD12 modular double pushbutton.
- Green flush upper pushbutton.
- Red extended lower pushbutton.
- No text or symbols on the pushbuttons.
- Yellow indicator light.
- Illuminated operator design.
- Momentary operating action.
- Black plastic construction.
- 22.5 mm mounting hole.
- IP66 front protection rating.
- Contact blocks and illumination unit ordered separately.
- ABB order code 1SFA611141R1103.
Compact Dual Control with Clear Visual Indication
Double pushbuttons allow two related control commands to be installed within a single operator position, helping machine builders conserve valuable panel space. The ABB MPD12-11Y combines a green flush upper actuator with a red extended lower actuator, providing both visual and tactile differentiation between the two momentary control functions.
The yellow indicator provides an additional signalling function when used with the appropriate ABB illumination unit. ABB’s modular pilot-device architecture allows compatible contact blocks and illumination components to be selected according to the electrical requirements of the machine, providing a flexible solution for new control panels and replacement applications.
Typical Applications
- Industrial machinery control panels.
- Machine command and control stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Operator stations and control desks.
- Process machinery and automation equipment.
- OEM machine-building applications.
