Why Choose the ABB MPD12-11C Double Pushbutton?
The ABB MPD12-11C is an illuminated double pushbutton operator designed for industrial machinery, control panels and operator stations. As part of the ABB modular plastic pilot device range, it combines two control functions with a clear indicator in a compact operator suitable for standard industrial panel mounting.

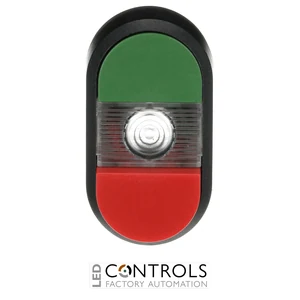

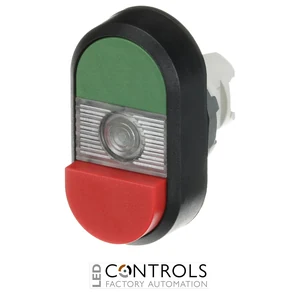

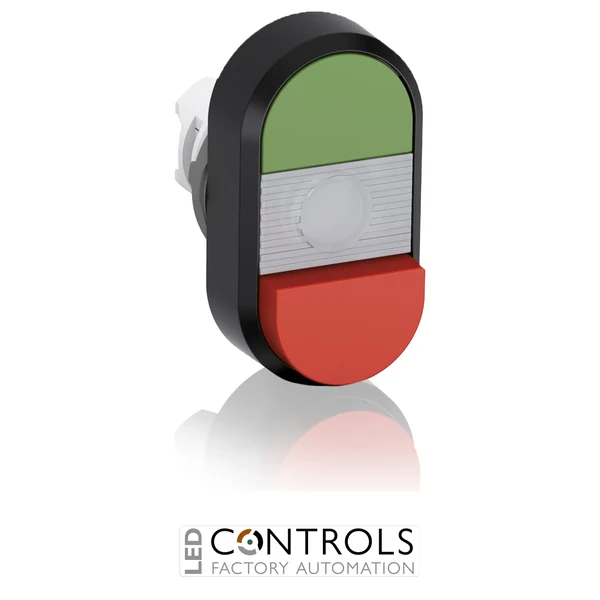

The MPD12-11C features a green flush upper pushbutton and a red extended lower pushbutton, with both actuators supplied without text or symbols. The clear light indicator provides a versatile visual signalling position when used with a compatible ABB LED block, allowing the indication colour to be selected through the illumination component used in the assembly.
Designed for a standard 22.5 mm mounting hole, the MPD12-11C provides IP66 protection and is suitable for ambient operating temperatures from -25 to +70 °C. Holders, contact blocks and LED blocks are selected separately as part of ABB's modular pilot-device system. ABB order code 1SFA611141R1108 identifies this exact MPD12-11C Double Pushbutton within ABB product group 312001-Pilot Devices (Secrl).
Key Advantages
- Compact double pushbutton operator combines two control functions in one panel position.
- Green upper and red lower actuators provide clear visual differentiation between commands.
- Flush upper and extended lower actuator arrangement provides useful tactile differentiation.
- Clear light indicator supports flexible visual status indication with a compatible LED block.
- IP66 protection supports dependable use in demanding industrial environments.
- Standard 22.5 mm panel mounting simplifies integration into machinery and control panels.
- Modular construction allows compatible ABB holders, contact blocks and LED blocks to be selected for the application.
Key Features
- ABB MPD12 modular double pushbutton.
- Green flush upper pushbutton.
- Red extended lower pushbutton.
- No text or symbols on either actuator.
- Clear light indicator.
- Illuminated operator design.
- 22.5 mm mounting hole diameter.
- IP66 protection rating.
- Ambient operating temperature range of -25 to +70 °C.
- Holders, contact blocks and LED blocks are selected separately.
- Compact dimensions of approximately 54 × 30 × 43 mm.
- ABB order code 1SFA611141R1108.
Compact Dual Control with Flexible Visual Indication
Double pushbuttons provide two related control functions within a single operator position, helping machine builders make efficient use of available panel space. The ABB MPD12-11C combines a green flush upper actuator with a red extended lower actuator, providing clear visual and tactile differentiation between the two controls.
The clear indicator position adds visual signalling capability when combined with an appropriate ABB LED block. ABB's modular pilot-device architecture allows the holder, contact blocks and illumination components to be selected according to the electrical requirements of the application, providing a flexible solution for industrial machinery and automation systems.
Typical Applications
- Industrial machinery control panels.
- Machine command and control stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Operator stations and control desks.
- Process machinery and automation equipment.
- OEM machine-building applications.
