Why Choose the ABB MPD13-11R Double Pushbutton?
The ABB MPD13-11R, ABB order code 1SFA611142R1101, is a modular illuminated double pushbutton operator designed for industrial machinery, automation systems and operator control panels. As part of ABB's Pilot Devices product group and modular plastic range, it combines two momentary control functions with a red indicator in a compact operator assembly.

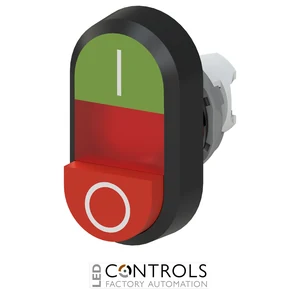

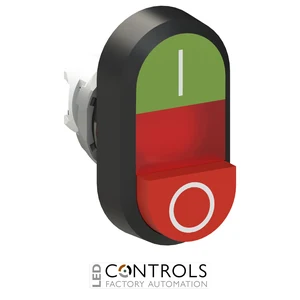

The MPD13-11R features a green flush upper pushbutton marked "I" and a red extended lower pushbutton marked "O", together with a red light indicator. Both controls use momentary operation, providing an intuitive arrangement for paired machine-control commands while the extended lower actuator makes the second control readily distinguishable by touch and appearance.
Designed for industrial operator panels, the MPD13-11R provides IP66 front protection and multiple NEMA enclosure ratings when correctly installed. The operator measures approximately 54 × 30 × 43 mm, weighs approximately 0.025 kg, and is supplied without contact blocks, allowing compatible ABB holders, contact blocks and LED blocks to be selected for the required application.
Key Advantages
- Compact illuminated double pushbutton operator combining two control functions and indication.
- Green "I" upper and red "O" lower actuators provide intuitive control identification.
- Flush upper and extended lower actuator configuration makes the two controls easy to distinguish.
- Integrated red light indicator provides clear visual signalling.
- IP66 front protection supports use in demanding industrial environments.
- Modular ABB design allows compatible holders, contact blocks and LED blocks to be selected for the application.
Key Features
- ABB MPD13-11R double pushbutton.
- Momentary operating function.
- Flush / extended actuator configuration.
- Green upper actuator marked "I".
- Red lower actuator marked "O".
- Red light indicator.
- Illuminated operator design.
- Black plastic construction.
- IP66 front protection rating.
- 2 million operations mechanical durability.
- Supplied without contact blocks for flexible configuration.
Double pushbuttons provide two related machine-control functions within a single compact operator, helping reduce the panel space required for industrial controls. The MPD13-11R combines a green "I" upper actuator with a red "O" lower actuator, while its flush and extended button profiles provide additional physical differentiation between the two controls.
The ABB MPD13-11R forms part of ABB's modular plastic pilot-device system. Compatible holders, contact blocks and LED blocks can be selected separately according to the required electrical switching and indication functions, providing a flexible solution for machine builders, panel manufacturers and industrial automation engineers.
Typical Applications
- Industrial machinery control panels.
- Operator stations and control consoles.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process control and automation equipment.
- OEM machinery requiring paired momentary controls and visual indication.
