Why Choose the ABB MPD13-11G Double Pushbutton?
The ABB MPD13-11G, ABB order code 1SFA611142R1102, is a modular illuminated double pushbutton operator designed for industrial machinery, automation systems and operator control panels. As part of ABB's Pilot Devices product group and modular plastic range, it combines two clearly differentiated pushbutton functions with a green indicator in a compact operator assembly.

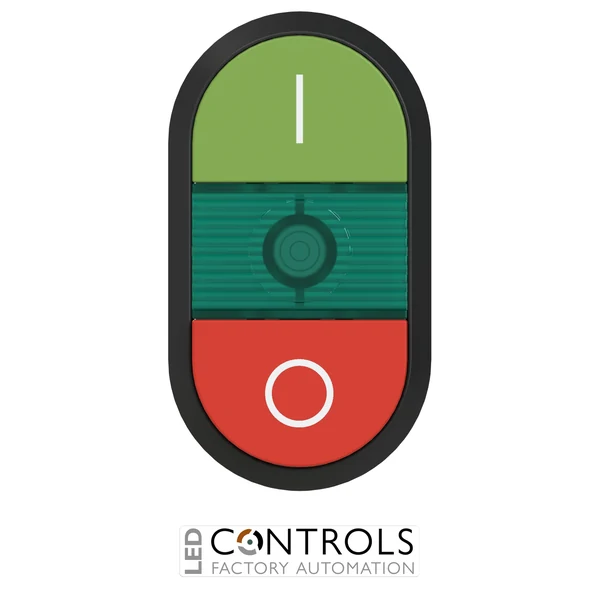

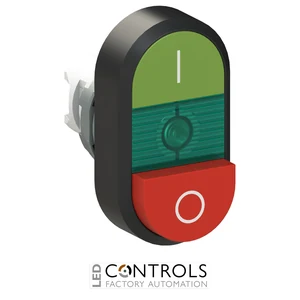

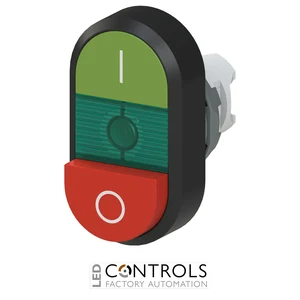

The MPD13-11G features a green flush upper pushbutton marked "I" and a red extended lower pushbutton marked "O", together with a green indicator light. The contrasting actuator colours, symbols and profiles provide clear visual and tactile differentiation, making the operator well suited to paired machine-control commands.
Designed for standard 22 mm industrial pilot-device mounting, the MPD13-11G requires an approximately 22.5 mm mounting hole and provides IP66 and NEMA 4X front protection when correctly installed. Its modular construction allows compatible ABB holders, contact blocks and LED or lamp blocks to be selected separately for the required electrical control and indication functions.
Key Advantages
- Compact illuminated double pushbutton operator combining control and indication functions.
- Green "I" upper and red "O" lower actuators provide intuitive operator identification.
- Flush upper and extended lower actuator configuration provides clear visual and tactile differentiation.
- Integrated green indicator light provides clear visual signalling.
- IP66 and NEMA 4X front protection supports demanding industrial environments.
- Modular ABB construction allows compatible holders, contact blocks and illumination components to be selected for the application.
Key Features
- ABB MPD13-11G double pushbutton.
- Green upper actuator marked "I".
- Red lower actuator marked "O".
- Flush upper / extended lower actuator configuration.
- Green indicator light.
- Illuminated operator design.
- Black plastic front ring.
- Designed for 22 mm pilot-device mounting.
- IP66 front protection rating.
- NEMA 4X front protection classification.
- Supplied without contact blocks or illumination block for flexible configuration.
Double pushbuttons allow related machine-control functions to be incorporated into a single compact operator, helping reduce the panel space required for industrial controls. The MPD13-11G combines a green "I" upper actuator with a red "O" lower actuator, while its flush and extended button profiles provide additional physical differentiation between the operating surfaces.
The ABB MPD13-11G forms part of ABB's modular plastic pilot-device system. Compatible holders, contact blocks and LED or lamp blocks can be selected separately according to the required switching and indication functions, providing a flexible solution for machine builders, control-panel manufacturers and industrial automation engineers.
Typical Applications
- Industrial machinery control panels.
- Operator stations and control consoles.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process control and automation equipment.
- OEM machinery requiring paired pushbutton controls and visual indication.
