Why Choose the ABB MPD13-11Y Double Pushbutton?
The ABB MPD13-11Y is an illuminated double pushbutton operator designed for industrial machinery, automation systems and electrical control panels. Part of the ABB modular plastic pilot device range, it combines two control actuators and a central indicator within one compact operator assembly.

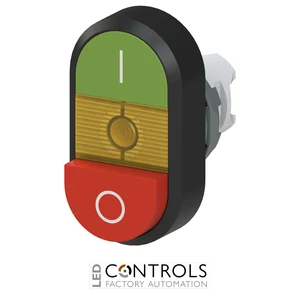

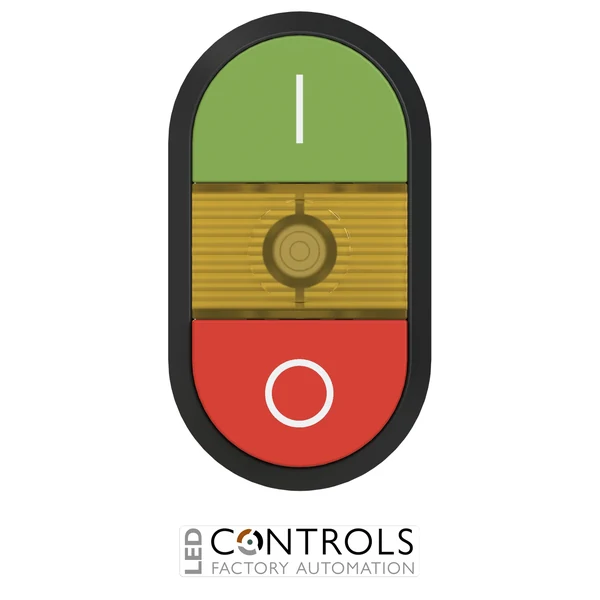

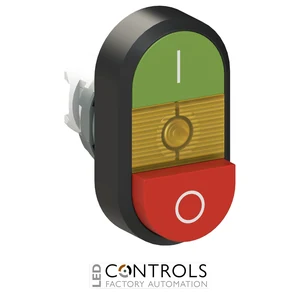

The MPD13-11Y features a green upper actuator marked “I” and a red lower actuator marked “O”, providing clear visual identification of complementary machine control functions. A yellow indicator between the pushbuttons provides an illuminated signalling position when used with a compatible illumination block.
Designed for momentary operation, the MPD13-11Y uses a flush upper button and extended lower button configuration. Its modular construction allows compatible ABB contact blocks and illumination components to be selected separately according to the electrical switching and signalling requirements of the application.
Key Advantages
- Compact double pushbutton operator combines two control functions in one panel position.
- Green “I” and red “O” actuators provide clear functional identification.
- Integrated yellow indicator supports illuminated status signalling.
- Flush upper and extended lower actuator arrangement aids tactile differentiation.
- Momentary operation for industrial command and control circuits.
- Modular design allows compatible contact and illumination blocks to be configured for the application.
Key Features
- ABB MPD13 modular double pushbutton.
- Green upper actuator marked “I”.
- Red lower actuator marked “O”.
- Yellow light indicator.
- Flush / extended actuator configuration.
- Momentary double pushbutton operation.
- Illuminated operator design.
- Black plastic construction.
- Supplied with no contact block.
- Part of ABB's modular plastic pilot device range.
- Product weight approximately 0.025 kg.
- ABB order code 1SFA611142R1103.
Double pushbuttons allow two related operator commands to be accommodated within a compact panel footprint. The ABB MPD13-11Y combines green “I” and red “O” controls with a yellow illuminated indicator, providing an organised interface for machinery and industrial automation applications.
The extended lower actuator provides tactile differentiation from the flush upper actuator, while the modular design allows the required ABB contact blocks and illumination components to be configured separately. This makes the MPD13-11Y a flexible operator solution for new control panels and replacement applications.
Typical Applications
- Industrial machinery control panels.
- Machine on/off command stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Packaging and processing machinery.
- OEM machinery and industrial automation systems.
