Why Choose the ABB MPD13-11C Double Pushbutton?
The ABB MPD13-11C is an illuminated momentary double pushbutton designed for industrial machinery, automation systems and electrical control panels. Part of the ABB modular plastic pilot device range, it combines two clearly differentiated control actuators with a central clear indicator in a compact 22 mm operator assembly.

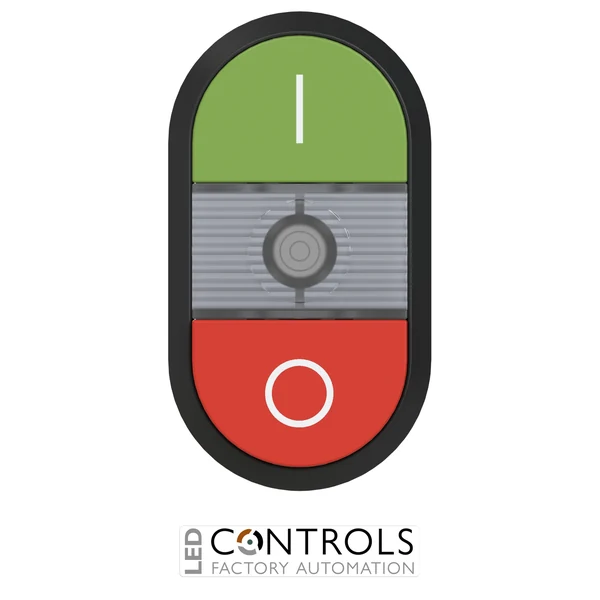

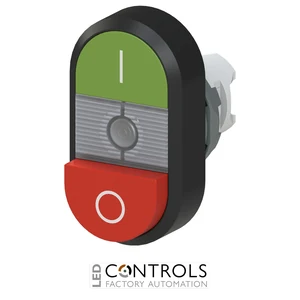

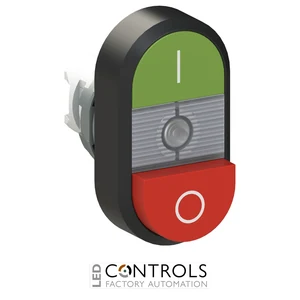

The MPD13-11C features a green upper button marked “I” and a red lower button marked “O”, providing intuitive identification of complementary control functions. The upper actuator is flush while the lower actuator is extended, giving both visual and tactile differentiation between the two operating positions.
A clear illuminated indicator is positioned between the two pushbuttons and can be used with a compatible ABB illumination block. The MPD13-11C is supplied without contact blocks, allowing the required switching contacts and illumination unit to be selected separately for the application.
Key Advantages
- Compact double pushbutton combines two control functions in one panel position.
- Green “I” upper button and red “O” lower button provide clear functional identification.
- Clear indicator supports illuminated machine-status signalling.
- Flush upper and extended lower actuator arrangement provides tactile differentiation.
- Momentary spring-return operation for industrial command circuits.
- IP66 front protection supports dependable operation in demanding industrial environments.
Key Features
- ABB MPD13 modular double pushbutton.
- Green upper actuator marked “I”.
- Red lower actuator marked “O”.
- Clear illuminated indicator.
- Flush / extended actuator configuration.
- Momentary spring-return operation.
- Standard 22 mm pilot-device format.
- Approximately 22.5 mm mounting-hole diameter.
- Black plastic bezel.
- IP66 front protection rating.
- Mechanical durability of 2 million operations.
- Contact blocks and illumination unit are ordered separately.
- ABB order code 1SFA611142R1108.
Double pushbuttons provide two related operator commands within a compact panel footprint. The ABB MPD13-11C combines a green “I” button and red “O” button with a clear illuminated indicator, providing an organised operator interface for machinery, production equipment and industrial automation systems.
The flush upper and extended lower actuator arrangement helps operators distinguish the two controls by touch as well as colour and marking. Its modular design allows compatible ABB contact blocks and an illumination unit to be selected according to the required switching and signalling functions.
Typical Applications
- Industrial machinery control panels.
- Machine on/off command stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Packaging and processing machinery.
- OEM machinery and industrial automation systems.
