Why Choose the ABB MPD14-11G Double Pushbutton?
The ABB MPD14-11G is an illuminated momentary double pushbutton operator designed for industrial machinery, control panels and operator stations. As part of the ABB MPD modular plastic pilot device range, it combines ON and OFF control functions with visual indication in a compact operator for industrial command and signalling applications.

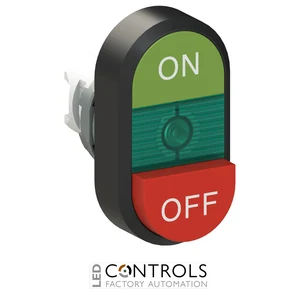

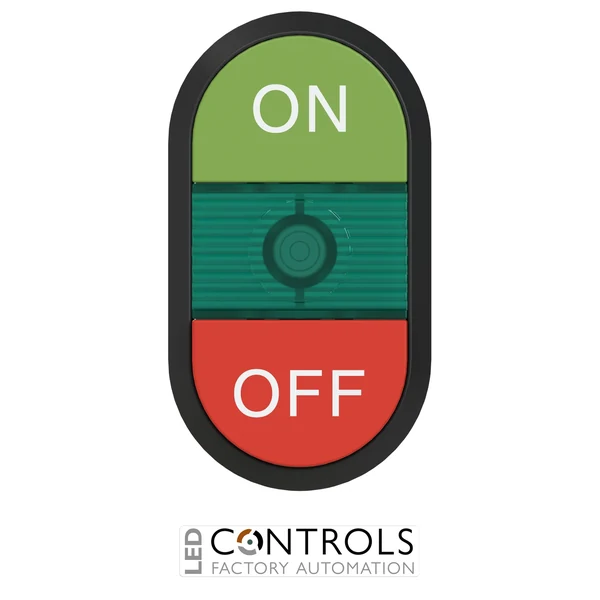

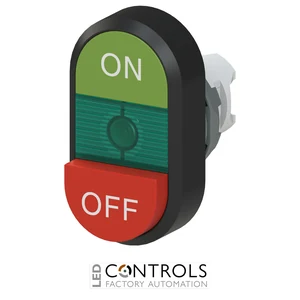

The MPD14-11G features a green flush upper pushbutton marked “ON” and a red extended lower pushbutton marked “OFF”. A green indicator light provides visual signalling when the operator is assembled with the appropriate illumination component, while the different actuator profiles provide clear visual and tactile differentiation between the two commands.
Designed for the 22 mm modular pilot-device system with a nominal 22.5 mm panel cut-out, the MPD14-11G provides IP66 front protection and operates across an ambient temperature range of -25 to +70 °C. The operator is supplied without a contact block, allowing compatible ABB contact and illumination components to be selected for the application. ABB order code 1SFA611143R1102 identifies this exact MPD14-11G Double Pushbutton.
Key Advantages
- Compact double pushbutton operator combines ON and OFF commands in one panel position.
- Green ON upper button and red OFF lower button provide intuitive command identification.
- Flush upper and extended lower actuator arrangement provides clear tactile differentiation.
- Green indicator light supports visual machine-status signalling.
- Momentary, spring-return operation for industrial control circuits.
- IP66 front protection for demanding industrial environments.
- Standard 22 mm modular format supports straightforward control-panel integration.
- Modular construction allows compatible ABB contact and illumination components to be selected separately.
Key Features
- ABB MPD14 modular double pushbutton.
- Momentary operating function.
- Green flush upper pushbutton marked ON.
- Red extended lower pushbutton marked OFF.
- Green indicator light.
- Illuminated operator design.
- Flush/extended actuator configuration.
- IP66 front protection rating.
- Ambient operating temperature range of -25 to +70 °C.
- Mechanical durability of 2 million operations.
- Supplied without a contact block.
- ABB order code 1SFA611143R1102.
Compact ON/OFF Control with Green Status Indication
Double pushbuttons provide two related control commands within a single operator position, helping machine builders conserve valuable control-panel space. The ABB MPD14-11G combines a green ON upper actuator with a red OFF lower actuator, providing an immediately recognisable machine-control interface, while the extended lower button makes the two functions easier to distinguish by touch.
The green indicator adds a visual signalling function when the operator is combined with the appropriate ABB illumination component. ABB's modular pilot-device architecture allows compatible holders, contact blocks and illumination components to be selected according to the electrical requirements of the application, providing a flexible and serviceable solution for industrial machinery and automation systems.
Typical Applications
- Industrial machinery ON/OFF control stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Machine control panels and operator stations.
- Process machinery and automation equipment.
- Control desks and local operator interfaces.
- OEM machinery and machine-building applications.
