Why Choose the ABB MPD15-11G Double Pushbutton?
The ABB MPD15-11G, ABB order code 1SFA611144R1102, is a modular illuminated double pushbutton operator designed for industrial machinery, automation systems and operator control panels. As part of ABB's Pilot Devices product group, it combines clearly identified START and STOP controls with a green indicator in a compact operator assembly.

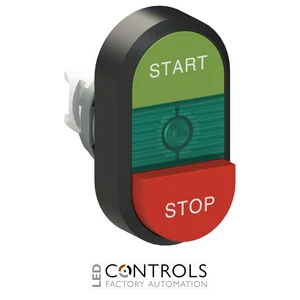

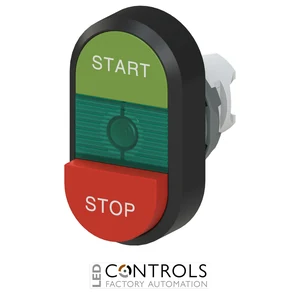

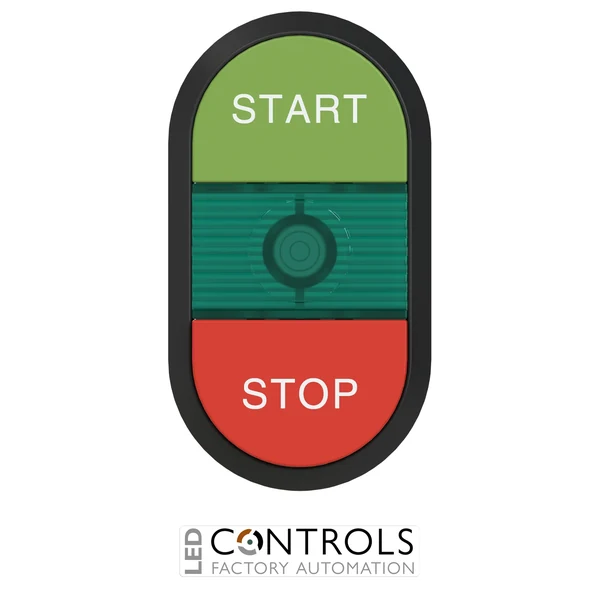

The MPD15-11G features a green flush upper pushbutton marked "START" and a red extended lower pushbutton marked "STOP", together with a green indicator light. Its momentary, spring-return operation provides an intuitive interface for paired machine commands, while the contrasting colours, markings and actuator profiles help operators quickly distinguish between the two functions.
Designed for standard 22 mm industrial pilot-device mounting, the MPD15-11G provides IP66 and NEMA 4X front protection when correctly installed. Its modular construction allows compatible ABB holders, contact blocks and illumination components to be selected according to the required electrical control and signalling functions.
Key Advantages
- Compact illuminated double pushbutton operator combining START, STOP and indication functions.
- Green START and red STOP actuators provide clear and intuitive operator identification.
- Flush upper and extended lower actuator configuration provides visual and tactile differentiation.
- Integrated green indicator light provides clear visual signalling.
- IP66 and NEMA 4X front protection supports demanding industrial environments.
- Modular ABB design allows compatible contact and illumination components to be selected for the application.
Key Features
- ABB MPD15-11G double pushbutton.
- Green upper actuator marked "START".
- Red lower actuator marked "STOP".
- Flush upper / extended lower actuator configuration.
- Green indicator light.
- Illuminated operator design.
- Momentary / spring-return operation.
- Plastic front ring construction.
- Designed for 22 mm pilot-device mounting.
- IP66 front protection rating.
- NEMA 4X front protection classification.
- Supplied without contact blocks for flexible circuit configuration.
Double pushbuttons allow related machine commands to be incorporated into a single compact operator, helping reduce the panel space required for industrial controls. The MPD15-11G combines a green START actuator with a red STOP actuator, providing familiar visual identification for machinery and process-control applications.
The ABB MPD15-11G uses a flush upper actuator and an extended lower actuator, adding tactile differentiation between the START and STOP controls. Its modular ABB pilot-device architecture allows compatible holders, contact blocks and illumination components to be selected separately according to the required switching and indication functions.
Typical Applications
- Industrial machinery START and STOP controls.
- Operator stations and control consoles.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process control and automation equipment.
- OEM machinery requiring combined START, STOP and visual indication functions.
